SKU: USEHE207-SNR

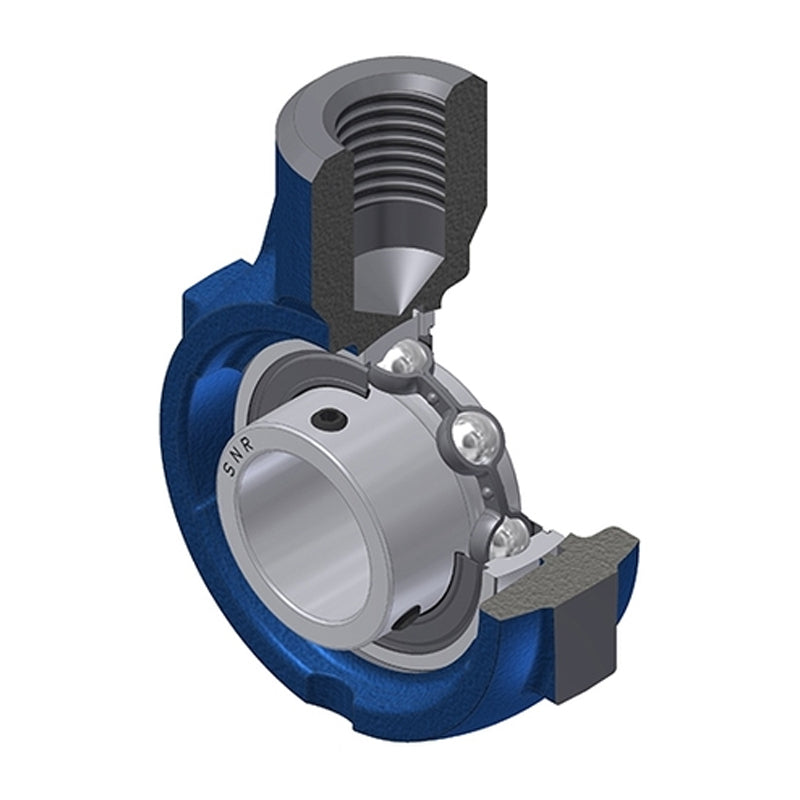

SNR USEHE207 Metric Cast Iron Hanger Bearing Unit with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- €36.82 ex VAT
- Sale price
- €36,82
- Regular price
-
Not in stock
Quantity Price Breaks
3
€32.77
4
€30.93
9
€30.56
19
€30.19
49
€29.82
99
€29.46
499
€27.62
999
€27.25
1999
€26.88
2999
€26.51
4999
€25.77
SKU:
USEHE207-SNR
SNR USEHE207 Metric Cast Iron Hanger Bearing Unit with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- €36.82 ex VAT
- Sale price
- €36,82
- Regular price
-
Description
FND92FY7ZI
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 35mm |
| A | = | 32mm |
| A2 | = | 40mm |
| B | = | 32mm |
| E | = | 24mm |
| H | = | 90mm |
| L | = | 122mm |
| L1 | = | 76mm |
| L3 | = | 40mm |
| S | = | 8.5mm |
| G | = | R1/8& |
| Prime | = | |
| G1 | = | M24 |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 1.12 kg |
