SKU: USFCE208-SNR

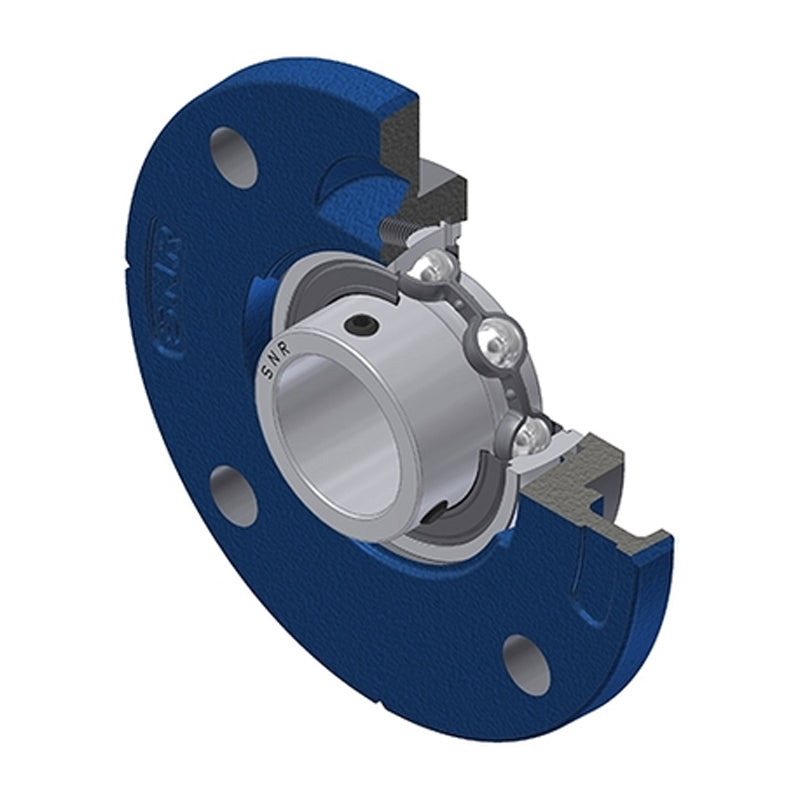

SNR USFCE208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert - Allow 2-3 Days
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
Not in stock
Quantity Price Breaks
3
€36.86
4
€34.79
9
€34.38
19
€33.96
49
€33.55
99
€33.14
499
€31.07
999
€30.65
1999
€30.24
2999
€29.82
4999
€28.99
SKU:
USFCE208-SNR
SNR USFCE208 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert - Allow 2-3 Days
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
Description
USFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 40mm |
| A | = | 23mm |
| A1 | = | 11.5mm |
| A2 | = | 24mm |
| A3 | = | 2mm |
| B | = | 34mm |
| e | = | -1mm |
| H3 | = | 100mm |
| J | = | 120mm |
| L | = | 145mm |
| N | = | 11.5mm |
| S | = | 9mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.6 kg |
