SKU: USFL204-SNR

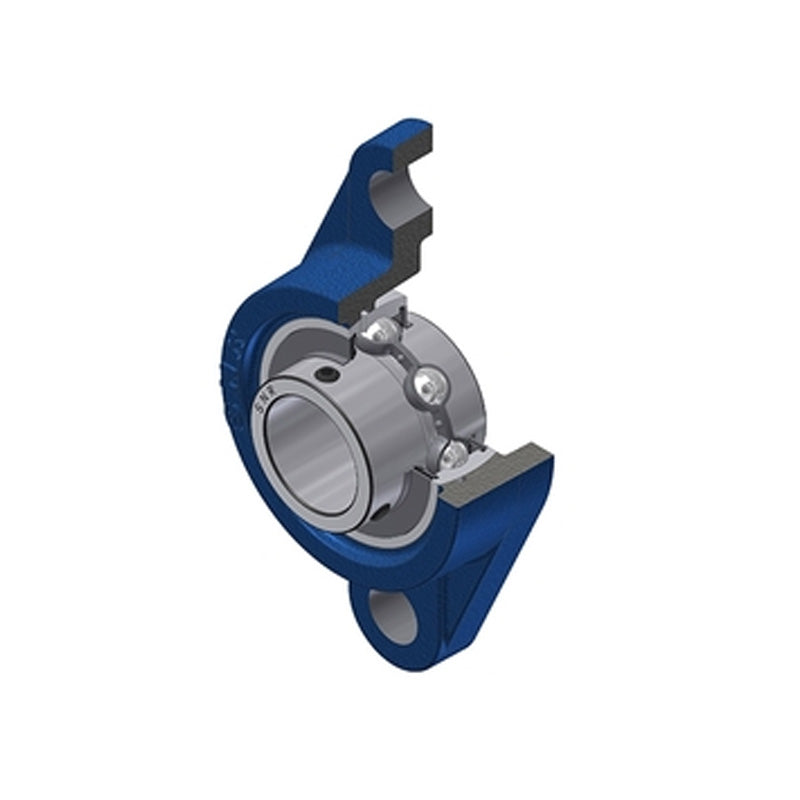

SNR USFL204 Metric Two Bolt Oval Cast Iron Flange Housing with 20mm Bore Insert
- Regular price
- €22.28 ex VAT
- Sale price
- €22,28
- Regular price
-
In stock
Quantity Price Breaks
3
€19.83
4
€18.72
9
€18.49
19
€18.27
49
€18.05
99
€17.82
499
€16.71
999
€16.49
1999
€16.26
2999
€16.04
4999
€15.60
SKU:
USFL204-SNR
SNR USFL204 Metric Two Bolt Oval Cast Iron Flange Housing with 20mm Bore Insert
- Regular price
- €22.28 ex VAT
- Sale price
- €22,28
- Regular price
-
Description
USFL200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 20mm |
| A | = | 25.5mm |
| A1 | = | 11mm |
| A2 | = | 33mm |
| B | = | 25mm |
| e | = | 15mm |
| H | = | 113mm |
| J | = | 90mm |
| L | = | 60mm |
| N | = | 12mm |
| S | = | 7mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.39 kg |
