SKU: USFL205-16-SNR

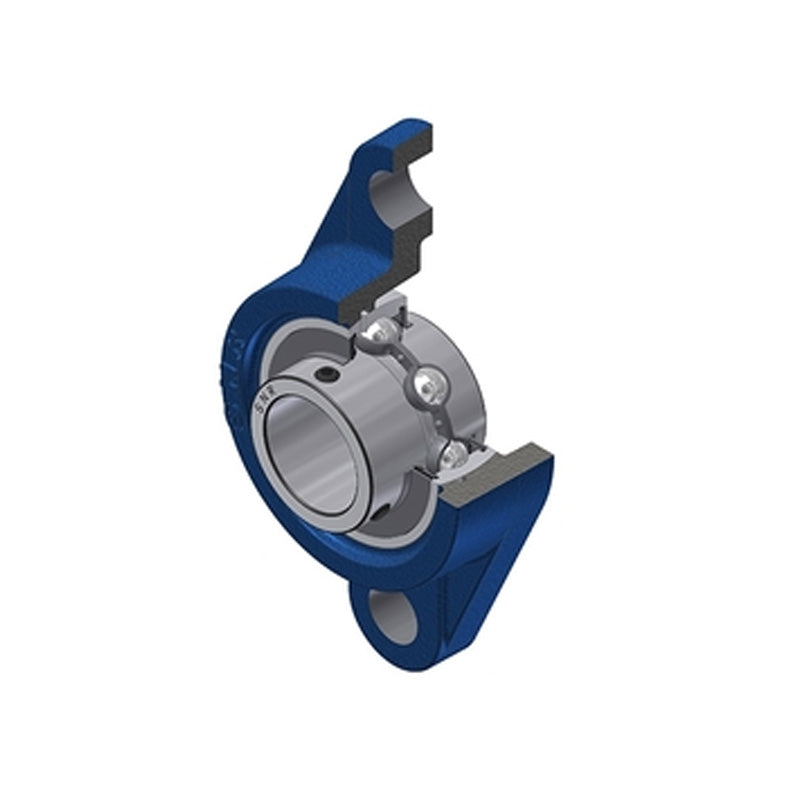

SNR USFL205-16 Imperial Two Bolt Oval Cast Iron Flange Housing with 1 inch Bore Insert
- Regular price
- €25.07 ex VAT
- Sale price
- €25,07
- Regular price
-
In stock
Quantity Price Breaks
3
€22.31
4
€21.06
9
€20.81
19
€20.56
49
€20.31
99
€20.06
499
€18.80
999
€18.55
1999
€18.30
2999
€18.05
4999
€17.55
SKU:
USFL205-16-SNR
SNR USFL205-16 Imperial Two Bolt Oval Cast Iron Flange Housing with 1 inch Bore Insert
- Regular price
- €25.07 ex VAT
- Sale price
- €25,07
- Regular price
-
Description
USFL200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 1 inch |
| A | = | 27mm |
| A1 | = | 13mm |
| A2 | = | 35.5mm |
| B | = | 27mm |
| e | = | 16mm |
| H | = | 130mm |
| J | = | 99mm |
| L | = | 68mm |
| N | = | 16mm |
| S | = | 7.5mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 14 kN |
| Static load C0 | = | 7.88 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 3.7 Nm |
| Mass | = | 0.57 kg |
