SKU: USFLE207-SNR

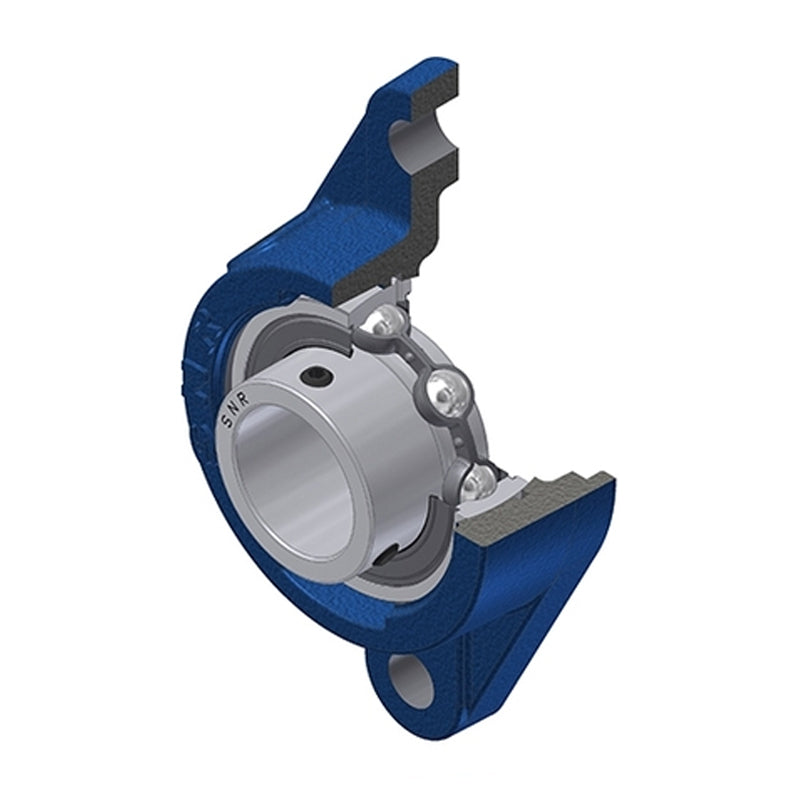

SNR USFLE207 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert
- Regular price
- €31.49 ex VAT
- Sale price
- €31,49
- Regular price
-
In stock
Quantity Price Breaks
3
€28.03
4
€26.45
9
€26.14
19
€25.82
49
€25.51
99
€25.19
499
€23.62
999
€23.30
1999
€22.99
2999
€22.67
4999
€22.04
SKU:
USFLE207-SNR
SNR USFLE207 Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert
- Regular price
- €31.49 ex VAT
- Sale price
- €31,49
- Regular price
-
Description
USFLE200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 35mm |
| A | = | 33.7mm |
| A1 | = | 12.5mm |
| A2 | = | 44.5mm |
| B | = | 32mm |
| e | = | 21mm |
| H | = | 155mm |
| J | = | 130mm |
| L | = | 92mm |
| N | = | 14mm |
| S | = | 8.5mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 1.12 kg |
