SKU: USFTE206-SNR

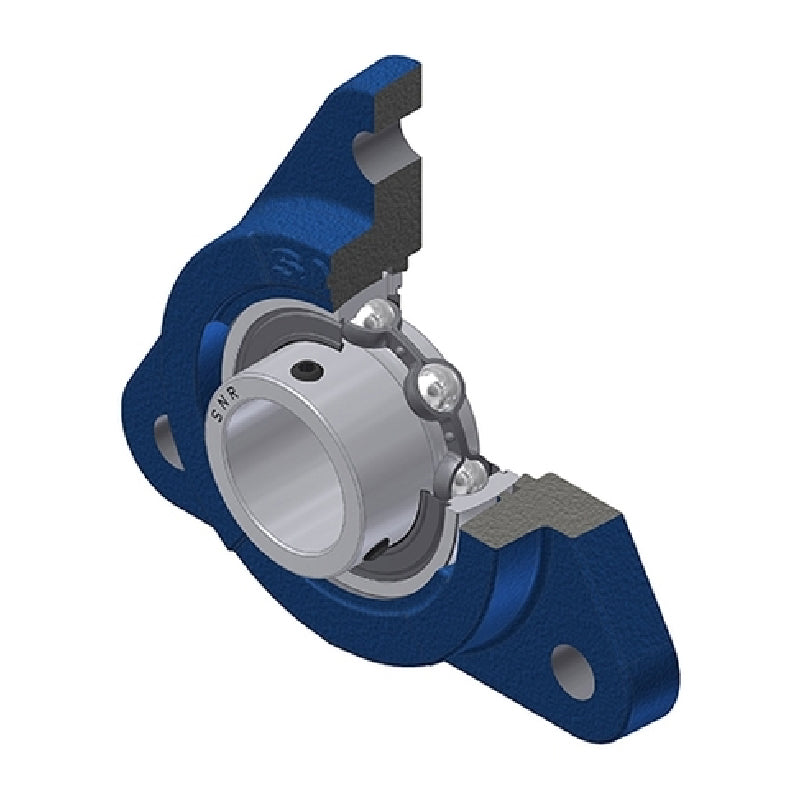

SNR USFTE206 Metric Three Bolt Cast Iron Triangular Housing with 30mm Bore Insert
- Regular price
- €34.52 ex VAT
- Sale price
- €34,52
- Regular price
-
In stock
Quantity Price Breaks
3
€30.72
4
€29.00
9
€28.65
19
€28.31
49
€27.96
99
€27.62
499
€25.89
999
€25.54
1999
€25.20
2999
€24.85
4999
€24.16
SKU:
USFTE206-SNR
SNR USFTE206 Metric Three Bolt Cast Iron Triangular Housing with 30mm Bore Insert
- Regular price
- €34.52 ex VAT
- Sale price
- €34,52
- Regular price
-
Description
USFTE200 Series 3 Bolt Cast Iron Triangular Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 30mm |
| A | = | 24mm |
| A1 | = | 12mm |
| A2 | = | 35mm |
| B | = | 30mm |
| e | = | 13mm |
| H | = | 117mm |
| H1 | = | 44mm |
| J | = | 116mm |
| N | = | 11mm |
| S | = | 8mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 1.07 kg |
