SKU: USFTE208-SNR

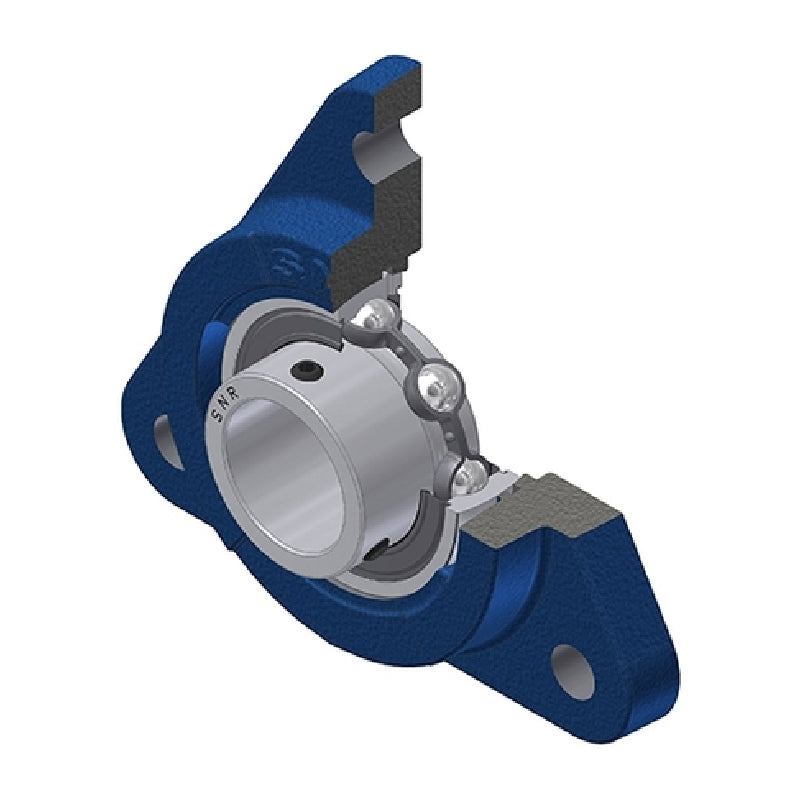

SNR USFTE208 Metric Three Bolt Cast Iron Triangular Housing with 40mm Bore Insert
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
In stock
Quantity Price Breaks
3
€38.80
4
€36.62
9
€36.19
19
€35.75
49
€35.32
99
€34.88
499
€32.70
999
€32.26
1999
€31.83
2999
€31.39
4999
€30.52
SKU:
USFTE208-SNR
SNR USFTE208 Metric Three Bolt Cast Iron Triangular Housing with 40mm Bore Insert
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
Description
USFTE200 Series 3 Bolt Cast Iron Triangular Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 40mm |
| A | = | 30mm |
| A1 | = | 16mm |
| A2 | = | 43.8mm |
| B | = | 34mm |
| e | = | 18.8mm |
| H | = | 153mm |
| H1 | = | 51mm |
| J | = | 140mm |
| N | = | 13.5mm |
| S | = | 9mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.29 kg |
