SKU: USP204-SNR

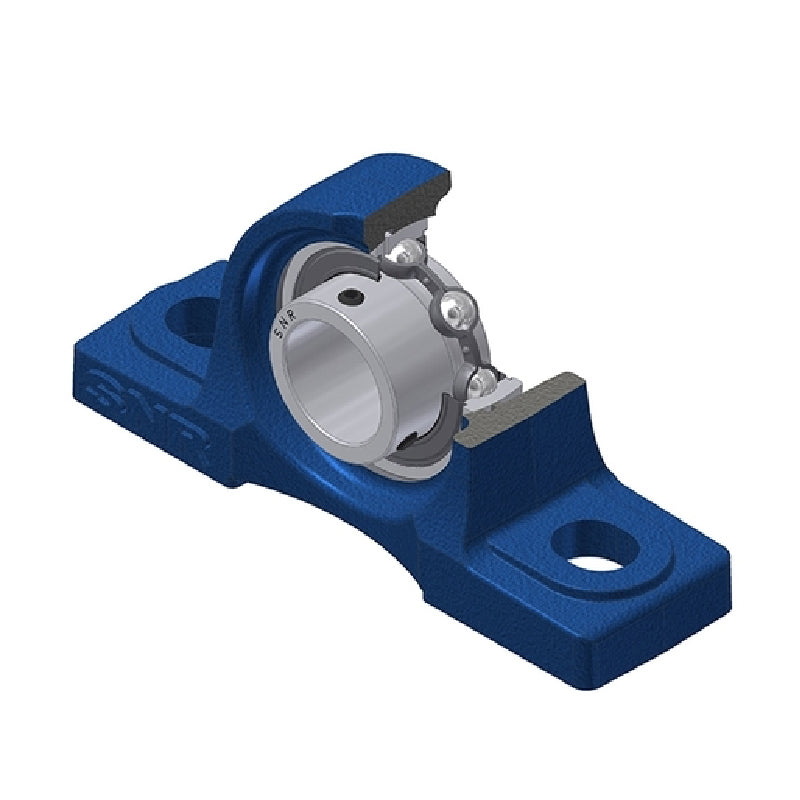

SNR USP204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert
- Regular price
- €22.28 ex VAT
- Sale price
- €22,28
- Regular price
-
In stock
Quantity Price Breaks
3
€19.83
4
€18.72
9
€18.49
19
€18.27
49
€18.05
99
€17.82
499
€16.71
999
€16.49
1999
€16.26
2999
€16.04
4999
€15.60
SKU:
USP204-SNR
SNR USP204 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert
- Regular price
- €22.28 ex VAT
- Sale price
- €22,28
- Regular price
-
Description
USP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 20mm |
| A | = | 38mm |
| A1 | = | 22mm |
| B | = | 25mm |
| H | = | 33.3mm |
| H1 | = | 15mm |
| H2 | = | 65mm |
| J | = | 95mm |
| L | = | 127mm |
| L1 | = | 42mm |
| N | = | 13mm |
| N1 | = | 19mm |
| S | = | 7mm |
| Grease fitting G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.63 kg |
