SKU: USPAE208-SNR

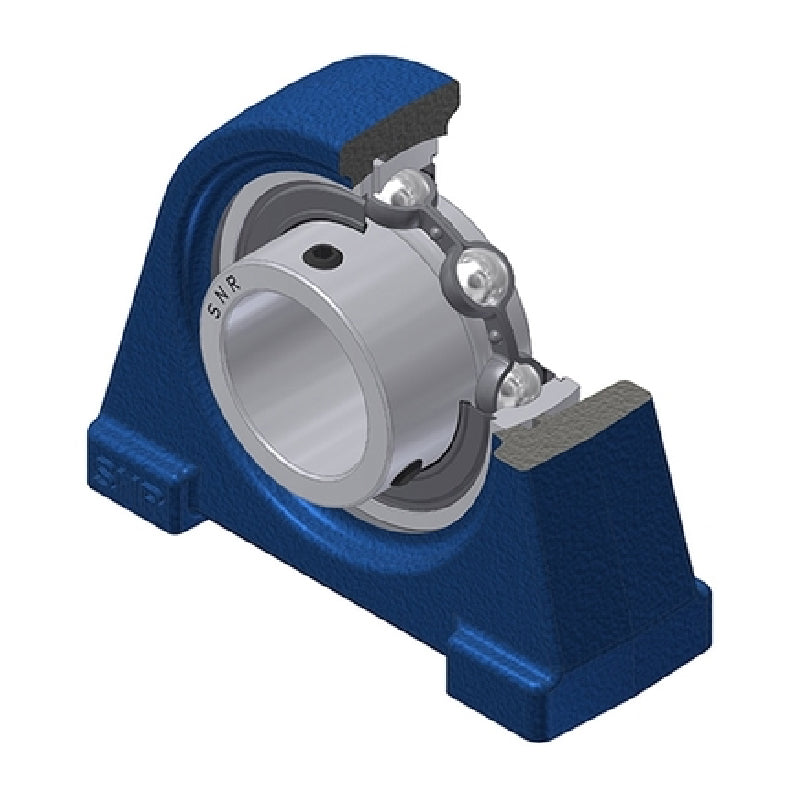

SNR USPAE208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
In stock
Quantity Price Breaks
3
€36.86
4
€34.79
9
€34.38
19
€33.96
49
€33.55
99
€33.14
499
€31.07
999
€30.65
1999
€30.24
2999
€29.82
4999
€28.99
SKU:
USPAE208-SNR
SNR USPAE208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert
- Regular price
- €41.42 ex VAT
- Sale price
- €41,42
- Regular price
-
Description
|
USPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 40mm |
| A | = | 47mm |
| A1 | = | 30mm |
| B | = | 34mm |
| E | = | 15mm |
| H | = | 49.2mm |
| H1 | = | 13mm |
| H2 | = | 99mm |
| J | = | 88.9mm |
| L | = | 116mm |
| L1 | = | 27mm |
| N | = | M12 |
| S | = | 9mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| --- | = | Unit information |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.6 kg |
