SKU: USPAE212-SNR

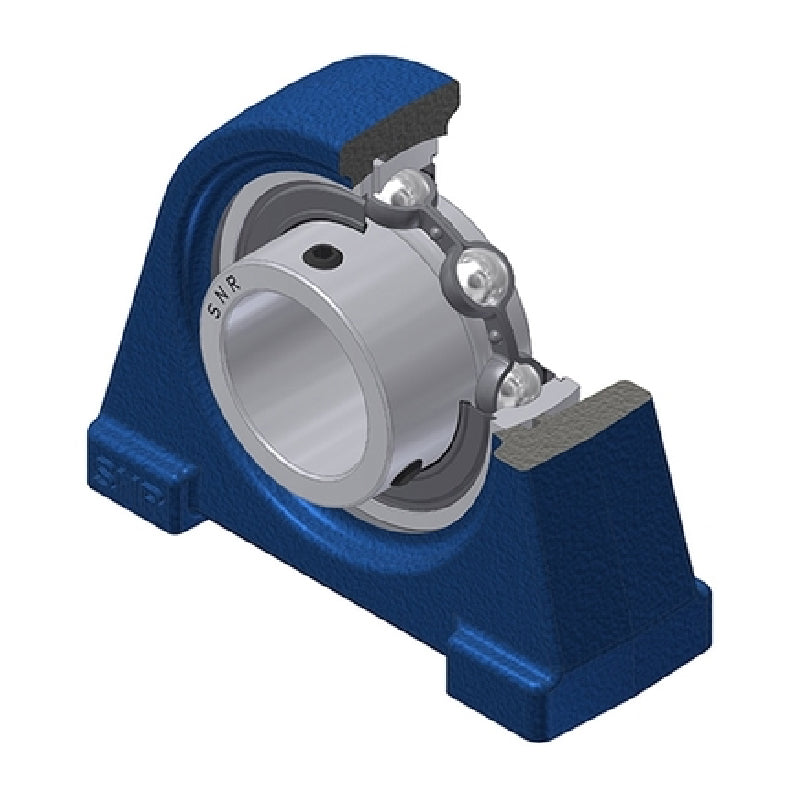

SNR USPAE212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert
- Regular price
- €75.09 ex VAT
- Sale price
- €75,09
- Regular price
-
In stock
Quantity Price Breaks
3
€66.83
4
€63.08
9
€62.32
19
€61.57
49
€60.82
99
€60.07
499
€56.32
999
€55.57
1999
€54.82
2999
€54.06
4999
€52.56
SKU:
USPAE212-SNR
SNR USPAE212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert
- Regular price
- €75.09 ex VAT
- Sale price
- €75,09
- Regular price
-
Description
|
USPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 60mm |
| A | = | 60mm |
| A1 | = | 42mm |
| B | = | 53.7mm |
| E | = | 20mm |
| H | = | 69.9mm |
| H1 | = | 16mm |
| H2 | = | 140mm |
| J | = | 118mm |
| L | = | 150mm |
| L1 | = | 32mm |
| N | = | M16 |
| S | = | 14.9mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| --- | = | Unit information |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 4 kg |
