SKU: USPE207-SNR
SNR USPE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- €31.49 ex VAT
- Sale price
- €31,49
- Regular price
-
Not in stock
Quantity Price Breaks
3
€28.03
4
€26.45
9
€26.14
19
€25.82
49
€25.51
99
€25.19
499
€23.62
999
€23.30
1999
€22.99
2999
€22.67
4999
€22.04
SKU:
USPE207-SNR
SNR USPE207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- €31.49 ex VAT
- Sale price
- €31,49
- Regular price
-
Description

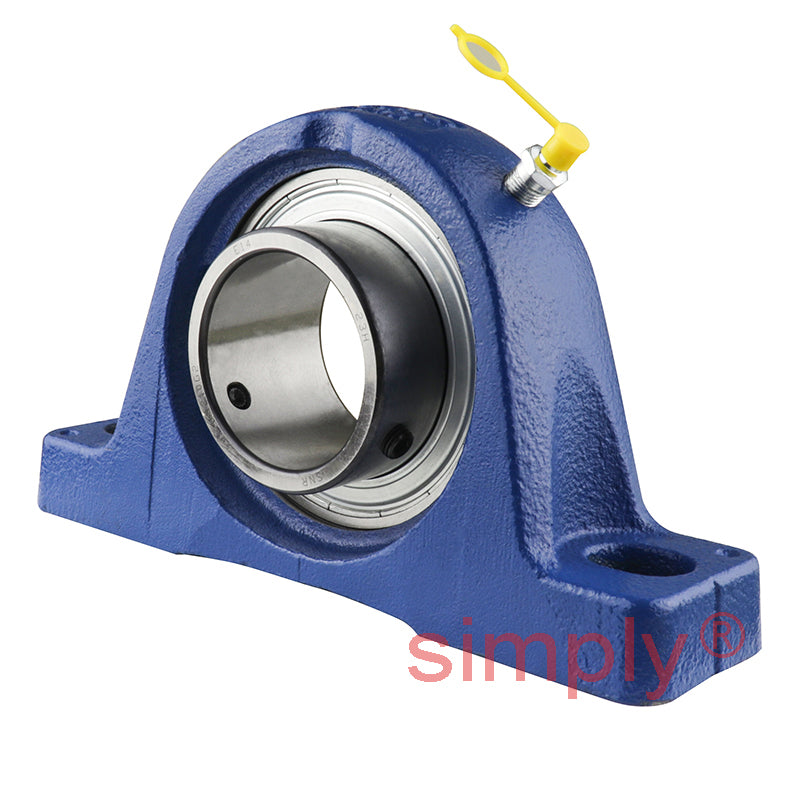

USPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 35mm |
| A | = | 45mm |
| A1 | = | 27mm |
| B | = | 32mm |
| H | = | 47.6mm |
| H1 | = | 19mm |
| H2 | = | 93mm |
| J | = | 126mm |
| L | = | 163mm |
| L1 | = | 49mm |
| N | = | 14mm |
| N1 | = | 21mm |
| S | = | 8.5mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 1.52 kg |
