SKU: USPE209-SNR

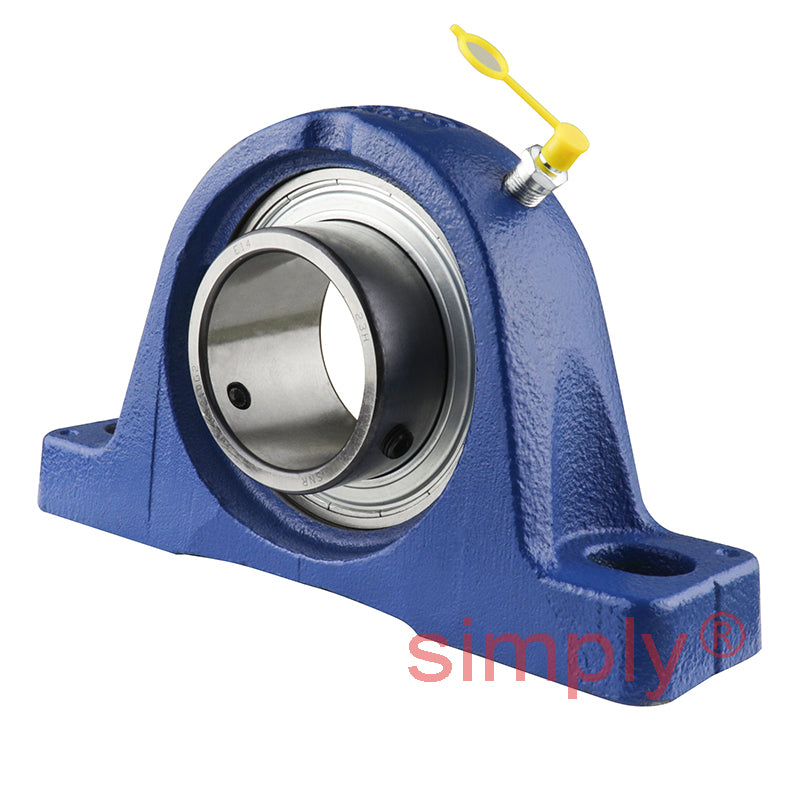

SNR USPE209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert
- Regular price
- €39.12 ex VAT
- Sale price
- €39,12
- Regular price
-
In stock
Quantity Price Breaks
3
€34.82
4
€32.86
9
€32.47
19
€32.08
49
€31.69
99
€31.30
499
€29.34
999
€28.95
1999
€28.56
2999
€28.17
4999
€27.38
SKU:
USPE209-SNR
SNR USPE209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert
- Regular price
- €39.12 ex VAT
- Sale price
- €39,12
- Regular price
-
Description
USPE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 45mm |
| A | = | 48mm |
| A1 | = | 32mm |
| B | = | 41.2mm |
| H | = | 54mm |
| H1 | = | 21.5mm |
| H2 | = | 107mm |
| J | = | 150mm |
| L | = | 192mm |
| L1 | = | 54.5mm |
| N | = | 14mm |
| N1 | = | 29mm |
| S | = | 10.2mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 31.85 kN |
| Static load C0 | = | 20.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.15 kg |
