SKU: USPG201N-SNR

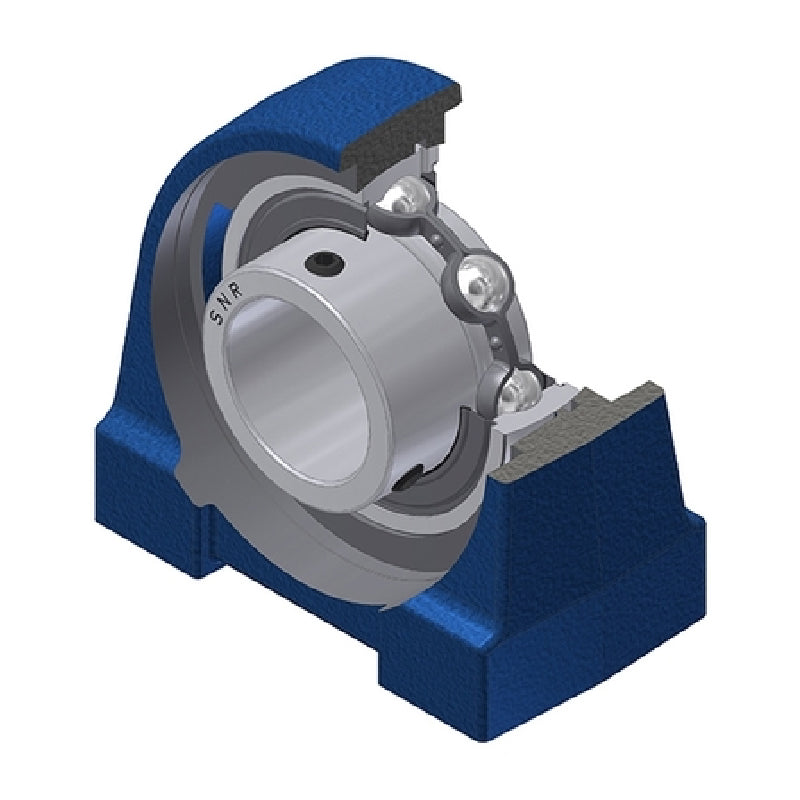

SNR USPG201N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 12mm Bore Insert - Allow 2-3 Days
- Regular price
- €58.86 ex VAT
- Sale price
- €58,86
- Regular price
-
Not in stock
Quantity Price Breaks
3
€52.39
4
€49.44
9
€48.85
19
€48.27
49
€47.68
99
€47.09
499
€44.15
999
€43.56
1999
€42.97
2999
€42.38
4999
€41.20
SKU:
USPG201N-SNR
SNR USPG201N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 12mm Bore Insert - Allow 2-3 Days
- Regular price
- €58.86 ex VAT
- Sale price
- €58,86
- Regular price
-
Description
|
USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 12mm |
| A | = | 30mm |
| A1 | = | 13mm |
| B | = | 22mm |
| E | = | 13mm |
| H | = | 30.2mm |
| H1 | = | 14mm |
| H2 | = | 57mm |
| J | = | 38mm |
| L | = | 55mm |
| L1 | = | 17mm |
| N | = | M6 |
| S | = | 6mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 9.55 kN |
| Static load C0 | = | 4.78 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 3.5 Nm |
| Mass | = | 0.31 kg |
