SKU: UST207-SNR

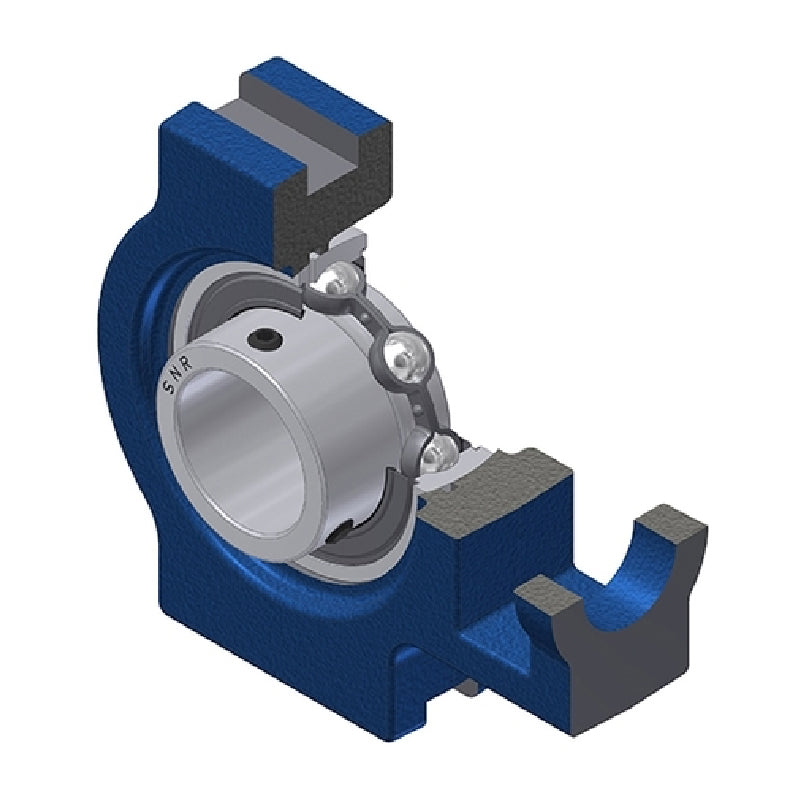

SNR UST207 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit
- Regular price
- €50.14 ex VAT
- Sale price
- €50,14
- Regular price
-
In stock
Quantity Price Breaks
3
€44.62
4
€42.12
9
€41.62
19
€41.11
49
€40.61
99
€40.11
499
€37.61
999
€37.10
1999
€36.60
2999
€36.10
4999
€35.10
SKU:
UST207-SNR
SNR UST207 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit
- Regular price
- €50.14 ex VAT
- Sale price
- €50,14
- Regular price
-
Description
UST200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 35mm |
| A | = | 37mm |
| A1 | = | 12mm |
| A2 | = | 30mm |
| B | = | 32mm |
| H | = | 102mm |
| H1 | = | 89mm |
| H2 | = | 64mm |
| L | = | 129mm |
| L1 | = | 78mm |
| L2 | = | 13mm |
| L3 | = | 64mm |
| N | = | 22mm |
| N1 | = | 16mm |
| N2 | = | 37mm |
| S | = | 8.5mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 1.52 kg |
