Optibelt VB-10x315-Z Cogged Classical 10mm Wide 6mm Deep V-Belt Allow 2-3 Days

SKU: VB-10X315Z-OPTI

Optibelt VB-10x315-Z Cogged Classical 10mm Wide 6mm Deep V-Belt Allow 2-3 Days

€8.09 ex VAT
€8,09
ex VAT
In stock

Quantity Price Breaks

10 €7.20
19 €6.80
29 €6.71
39 €6.63
49 €6.55
74 €6.47
99 €6.07
199 €5.99
249 €5.91
499 €5.82
999 €5.66
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Optibelt VB-10x315-Z Cogged Classical 10mm Wide 6mm Deep V-Belt Allow 2-3 Days
SKU: VB-10X315Z-OPTI

Optibelt VB-10x315-Z Cogged Classical 10mm Wide 6mm Deep V-Belt Allow 2-3 Days

€8.09 ex VAT
€8,09
ex VAT

Description

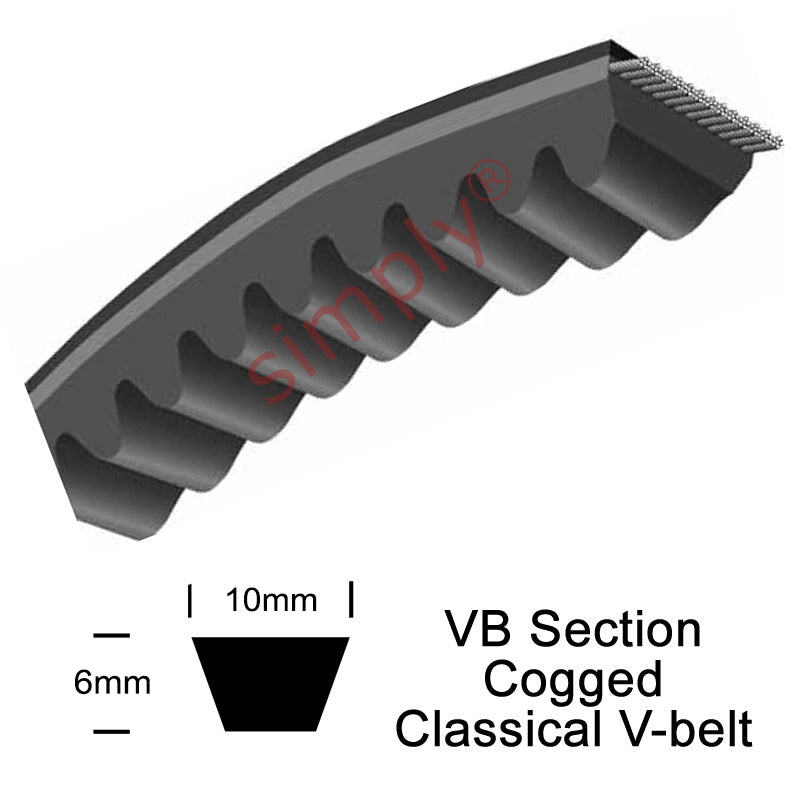

VB Section Classical V belts: Designed for transmission of fractional horsepower loads at high speeds over small diameter pulleys and short center distances. Also for use in multiple V-belt drives where high shock load and heavy-duty loads are encountered. They have a profile of 10x6mm.
Benefits: Universal classical profile to BS 3790, DIN 2215 and ISO 4184,Oil, ozone and abrasion resistant, Temperature resistance: -20deg C to +70deg C, Static conductive to ISO 1813

Technical

Inside Length = 315mm
Width = 10mm
Height = 6mm
Minimum pulley diameter = 20mm
Max belt speed = 30 m/s
