SKU: VHRE-1-1/2

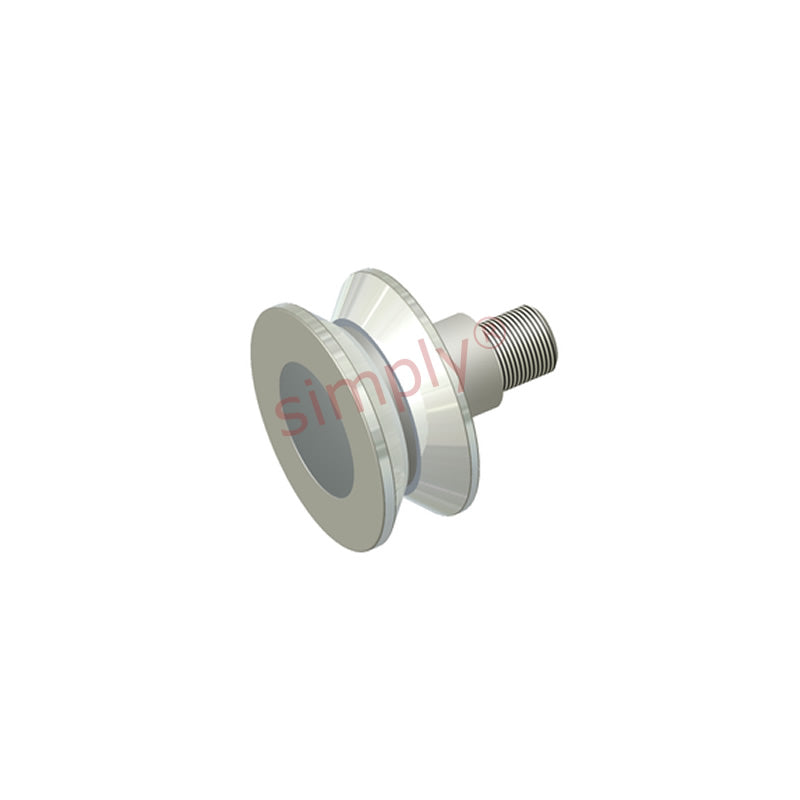

Major Brand VHRE1-1/2 Hex Head Eccentric V-Groove Hi-Roller Bearing 1-1/2 inch Outside Diameter Allow 7-10 Days
- Regular price
- €157.88 ex VAT
- Sale price
- €157,88
- Regular price
-
Not in stock
Quantity Price Breaks
3
€140.51
4
€132.62
9
€131.04
19
€129.46
29
€127.88
39
€126.30
49
€118.41
59
€116.83
249
€115.25
499
€113.67
999
€110.52
SKU:
VHRE-1-1/2
Major Brand VHRE1-1/2 Hex Head Eccentric V-Groove Hi-Roller Bearing 1-1/2 inch Outside Diameter Allow 7-10 Days
- Regular price
- €157.88 ex VAT
- Sale price
- €157,88
- Regular price
-
Description
|
V-Groove Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
Technical
| A | = | 1.5 inch |
| B | = | 0.731 inch |
| F | = | 1.125 inch |
| G | = | 0.391 inch |
| K | = | 0.4375 inch |
| L | = | 1 inch |
| M | = | 0.5 inch |
| Thread class 2A N | = | 7/16-20 UNF |
| R | = | 0.75 inch |
| S | = | 0.031 inch |
| T | = | 0.625 inch |
| U | = | 0.5 inch |
| W | = | 0.03 inch |
| Basic dynamic rating | = | 630 lbs |
| Dynamic thrust load rating | = | 140 lbs |
| Max static capacity | = | 230 lbs |
