SKU: VHRE-4-1/2

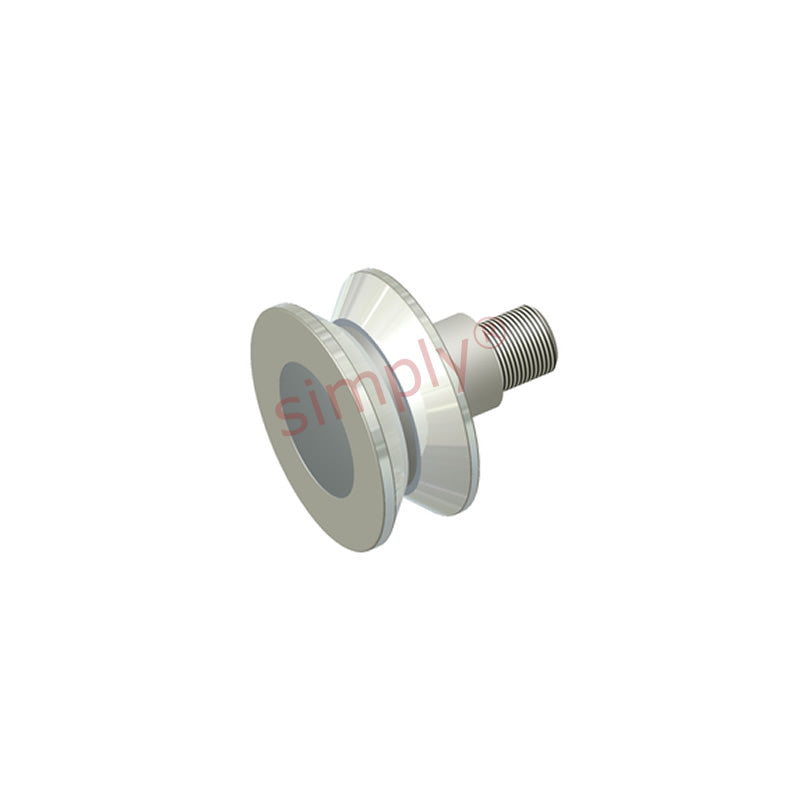

Major Brand VHRE4-1/2 Hex Head Eccentric V-Groove Hi-Roller Bearing 4-1/2 inch Outside Diameter Allow 7-10 Days
- Regular price
- €440.02 ex VAT
- Sale price
- €440,02
- Regular price
-
Not in stock
Quantity Price Breaks
3
€391.62
4
€369.62
9
€365.22
19
€360.82
29
€356.42
39
€352.02
49
€330.02
59
€325.61
249
€321.21
499
€316.81
999
€308.01
SKU:
VHRE-4-1/2
Major Brand VHRE4-1/2 Hex Head Eccentric V-Groove Hi-Roller Bearing 4-1/2 inch Outside Diameter Allow 7-10 Days
- Regular price
- €440.02 ex VAT
- Sale price
- €440,02
- Regular price
-
Description
|
V-Groove Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
Technical
| A | = | 4.5 inch |
| B | = | 2 inch |
| F | = | 3 inch |
| G | = | 1 inch |
| K | = | 1.25 inch |
| L | = | 2.5 inch |
| M | = | 1-1/4 inch |
| Thread class 2A N | = | 1-1/4-12 UNF |
| R | = | 2.31 inch |
| S | = | 0.062 inch |
| T | = | 1.75 inch |
| U | = | 1.23 inch |
| W | = | 0.06 inch |
| Basic dynamic rating | = | 14270 lbs |
| Dynamic thrust load rating | = | 12000 lbs |
| Max static capacity | = | 20000 lbs |
