SKU: WG60-MB
Major Branded WG60 Weld on Hub Shaft Fixing with Tapered Bore
- Regular price
- €1.133.52 ex VAT
- Sale price
- €1.133,52
- Regular price
-
Not in stock
Quantity Price Breaks
3
€1.008.83
5
€952.16
9
€940.82
19
€929.49
49
€918.15
74
€906.82
99
€850.14
199
€838.80
249
€827.47
499
€816.13
999
€793.46
SKU:
WG60-MB
Major Branded WG60 Weld on Hub Shaft Fixing with Tapered Bore
- Regular price
- €1.133.52 ex VAT
- Sale price
- €1.133,52
- Regular price
-
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.

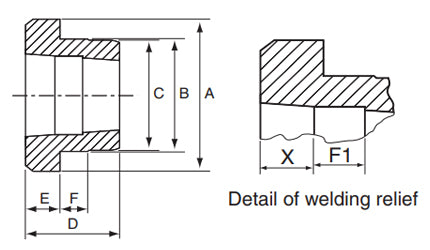

Technical
| Hub Reference | = | WG100 |
| Bush Number | = | 10085 |
| A | = | 559mm |
| B | = | 495mm |
| C | = | 494mm |
| D | = | 216mm |
| E | = | 51mm |
| F | = | 51mm |
| F1 | = | 72mm |
| X | = | 72mm |
