SKU: WHG35-MB

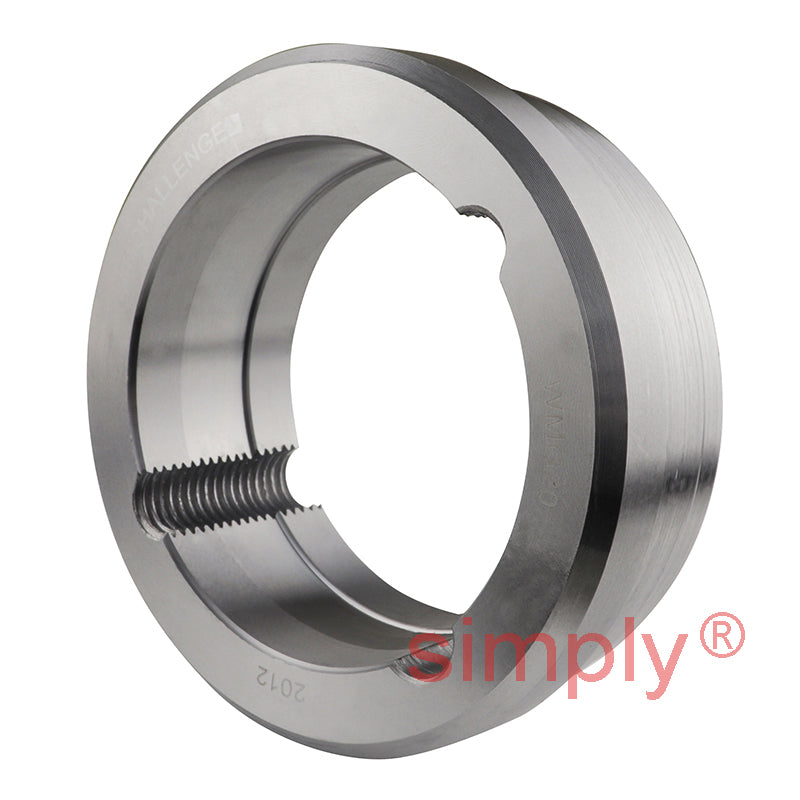

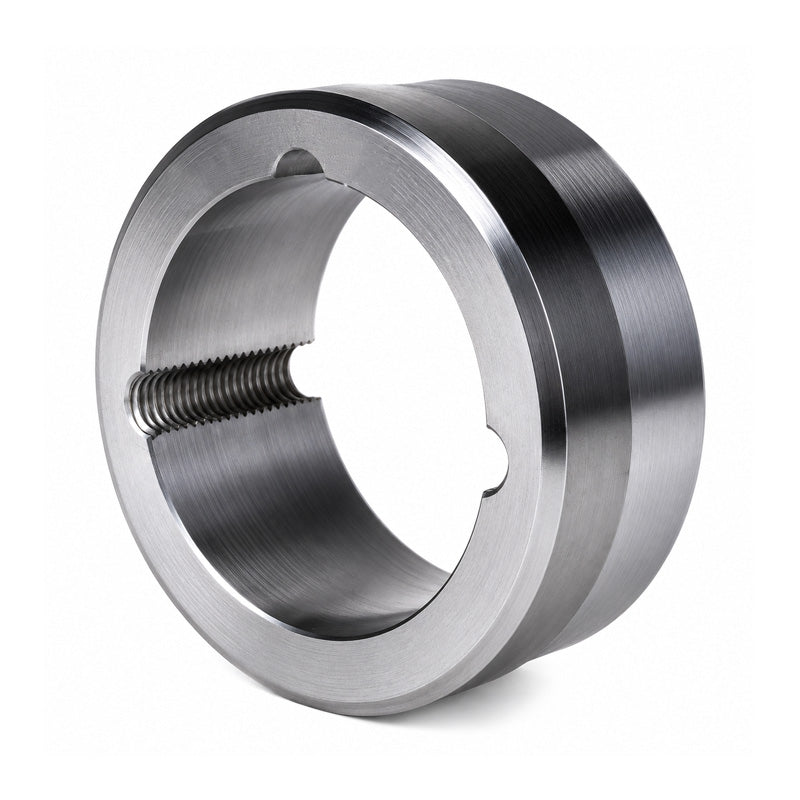

Major Branded WHG35 Weld on Hub Shaft Fixing with Tapered Bore
- Regular price
- €86.73 ex VAT
- Sale price
- €86,73
- Regular price
-
Not in stock
Quantity Price Breaks
3
€77.19
5
€72.85
9
€71.99
19
€71.12
49
€70.25
74
€69.38
99
€65.05
199
€64.18
249
€63.31
499
€62.45
999
€60.71
SKU:
WHG35-MB
Major Branded WHG35 Weld on Hub Shaft Fixing with Tapered Bore
- Regular price
- €86.73 ex VAT
- Sale price
- €86,73
- Regular price
-
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
Technical
| Hub Reference | = | WHG35 |
| Bush Number | = | 3525 |
| A | = | 190mm |
| B | = | 180mm |
| C | = | 179.5mm |
| D | = | 65mm |
| E | = | 25mm |
| F | = | 25mm |
| F1 | = | 22mm |
| X | = | 22mm |
