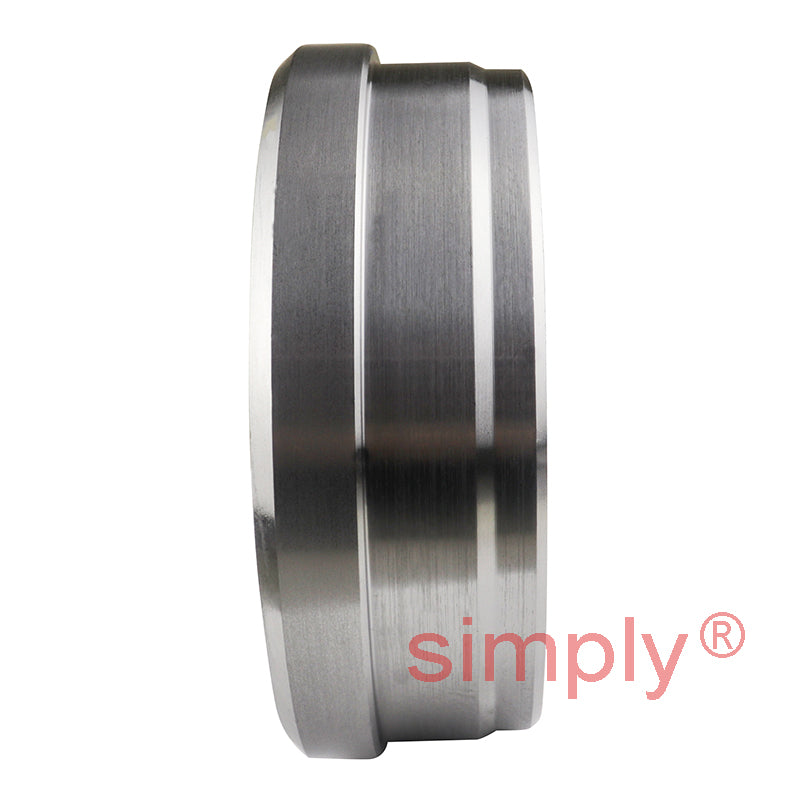

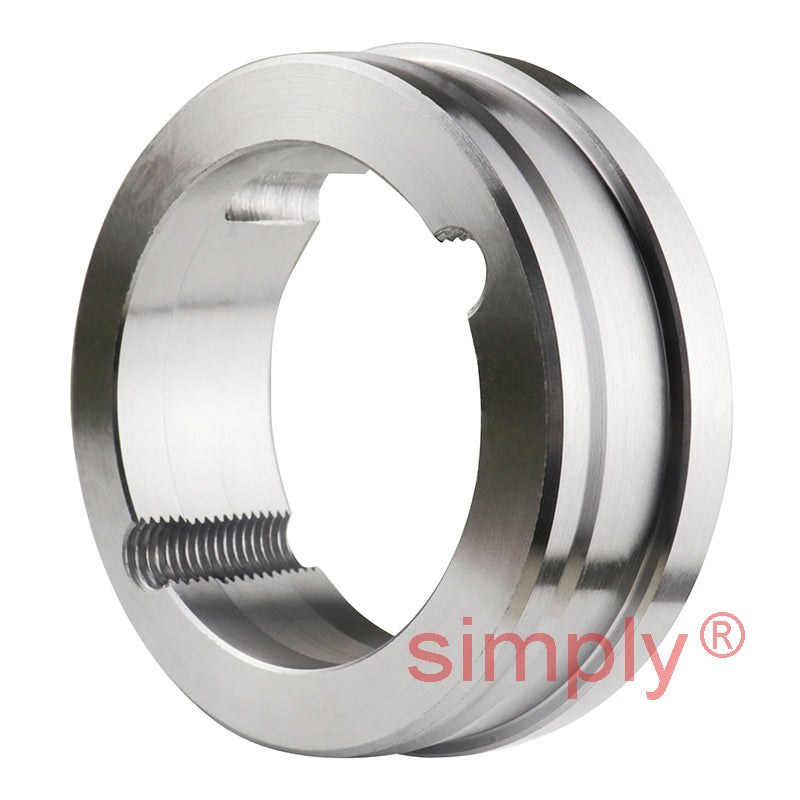

Major Branded WMG20 Weld on Hub Shaft Fixing with Tapered Bore
Major Branded WMG20 Weld on Hub Shaft Fixing with Tapered Bore
Major Branded WMG20 Weld on Hub Shaft Fixing with Tapered Bore
Major Branded WMG20 Weld on Hub Shaft Fixing with Tapered Bore
Major Branded WMG20 Weld on Hub Shaft Fixing with Tapered Bore
Major Branded WMG20 Weld on Hub Shaft Fixing with Tapered Bore

SKU: WMG20-MB

Major Branded WMG20 Weld on Hub Shaft Fixing with Tapered Bore

€21.76 ex VAT
€21,76
ex VAT
In stock

Quantity Price Breaks

3 €19.37
5 €18.28
9 €18.06
19 €17.84
49 €17.63
74 €17.41
99 €16.32
199 €16.10
249 €15.88
499 €15.67
999 €15.23
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded WMG20 Weld on Hub Shaft Fixing with Tapered Bore
Major Branded WMG20 Weld on Hub Shaft Fixing with Tapered Bore
Major Branded WMG20 Weld on Hub Shaft Fixing with Tapered Bore
SKU: WMG20-MB

Major Branded WMG20 Weld on Hub Shaft Fixing with Tapered Bore

€21.76 ex VAT
€21,76
ex VAT

Description

Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.

Technical

Hub Reference = WMG20
Bush Number = 2012
A = 95mm
B = 90mm
C = 88mm
D = 32mm
E = 12mm
F = 12mm
F1 = 11mm
X = 11mm
