SKU: WMO-0812-08

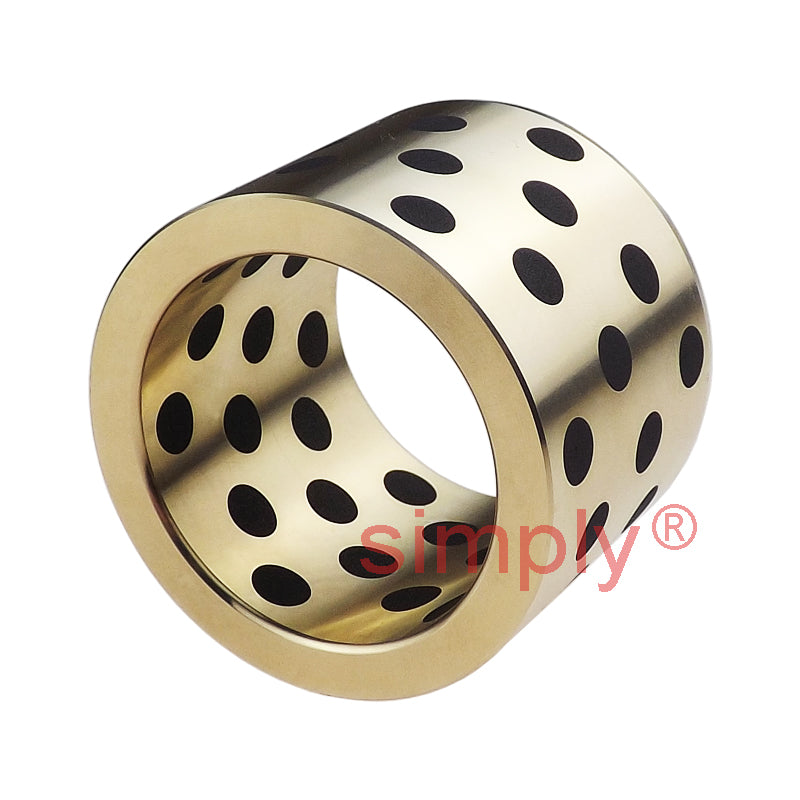

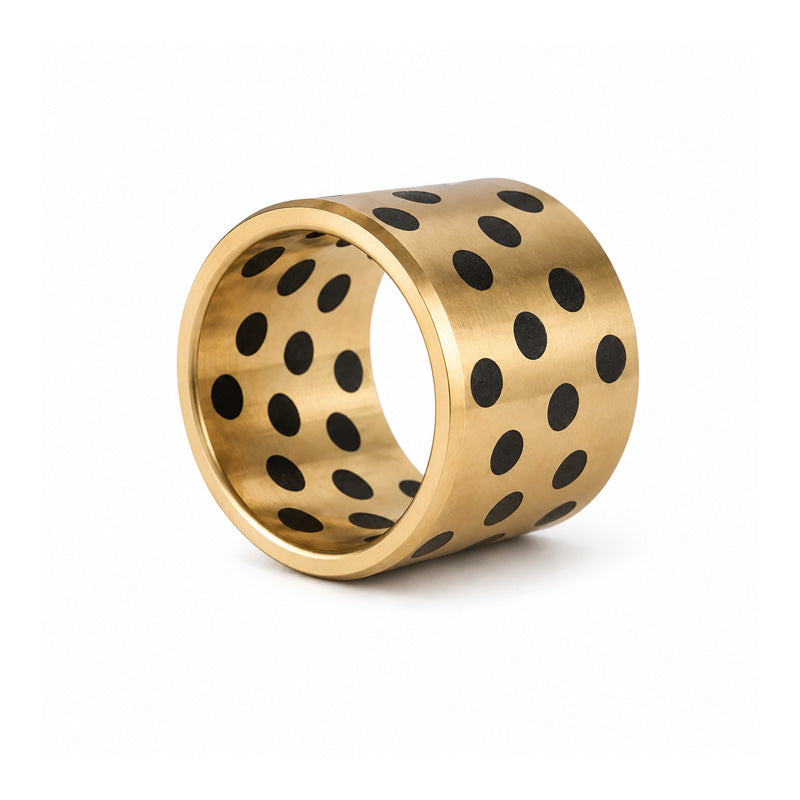

WMO081208 Plain Oilless Bronze Bush 8x12x8mm
- Regular price
- €12.32 ex VAT
- Sale price
- €12,32
- Regular price
-
In stock
Quantity Price Breaks
3
€10.96
5
€10.35
9
€10.23
19
€10.10
49
€9.98
74
€9.86
99
€9.24
199
€9.12
249
€8.99
499
€8.87
999
€8.62
SKU:
WMO-0812-08
WMO081208 Plain Oilless Bronze Bush 8x12x8mm
- Regular price
- €12.32 ex VAT
- Sale price
- €12,32
- Regular price
-
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Technical

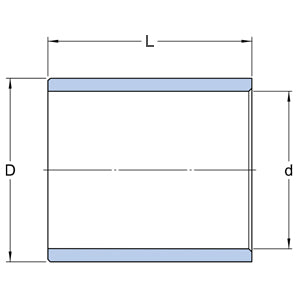

| d | = | 8mm |
| D | = | 12mm |
| L | = | 8mm |
| PV | = | 3.3 max (N/mm? x m/s) |
| Static load | = | 100 max (N/mm?) |
| Sliding speed | = | 0.3 max (m/s) |
| Operating temperature | = | Up to 300 (?C) |
| Coefficient of thermal expansion | = | 19 x 10-5/?C |
| Coefficient of friction | = | 0.16 |
| Hardness | = | 210 min (HB) |
| Tensile strength | = | 750 min (N/mm?) |
| Elongation | = | 12 min (%) |
| Density | = | 8 (g/cm?) |
| Max rpm | = | 596.831 rpm |
| Max load | = | 652.396 kg |
| Housing Tolerance | = | H7 |
