SKU: WMO-1824-30

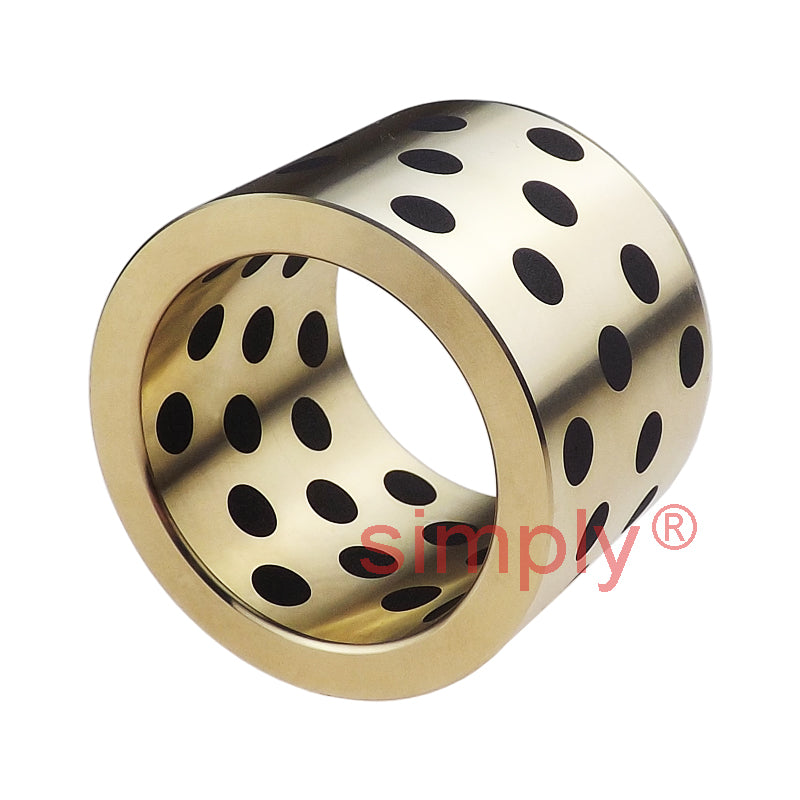

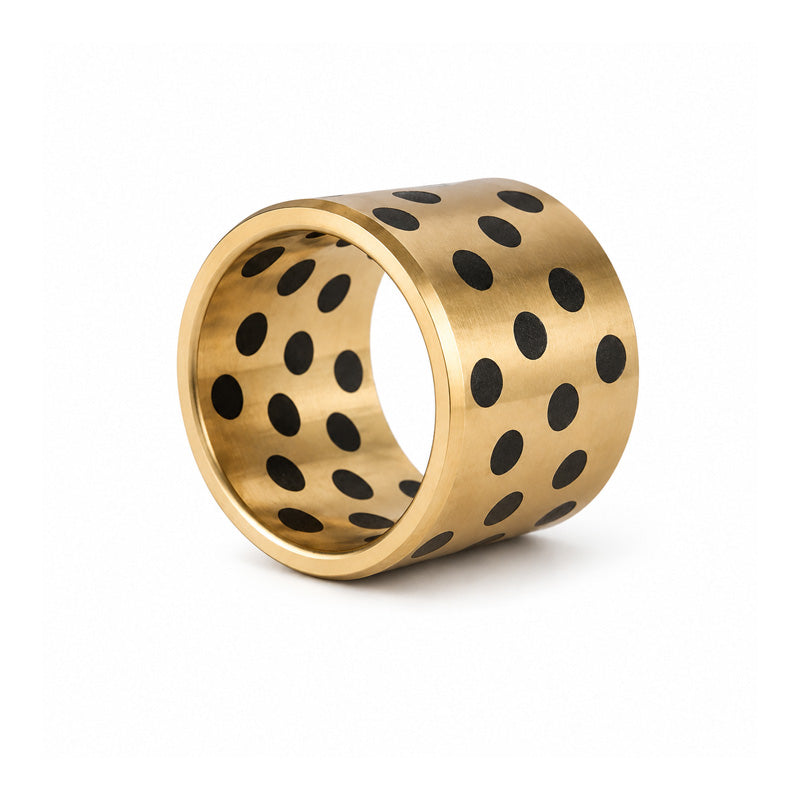

WMO182430 Plain Oilless Bronze Bush 18x24x30mm
- Regular price
- €18.39 ex VAT
- Sale price
- €18,39
- Regular price
-
In stock
Quantity Price Breaks
3
€16.37
5
€15.45
9
€15.26
19
€15.08
49
€14.90
74
€14.71
99
€13.79
199
€13.61
249
€13.42
499
€13.24
999
€12.87
SKU:
WMO-1824-30
WMO182430 Plain Oilless Bronze Bush 18x24x30mm
- Regular price
- €18.39 ex VAT
- Sale price
- €18,39
- Regular price
-
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Technical
| d | = | 18mm |
| D | = | 24mm |
| L | = | 30mm |
| PV | = | 3.3 max (N/mm? x m/s) |
| Static load | = | 100 max (N/mm?) |
| Sliding speed | = | 0.3 max (m/s) |
| Operating temperature | = | Up to 300 (?C) |
| Coefficient of thermal expansion | = | 19 x 10-5/?C |
| Coefficient of friction | = | 0.16 |
| Hardness | = | 210 min (HB) |
| Tensile strength | = | 750 min (N/mm?) |
| Elongation | = | 12 min (%) |
| Density | = | 8 (g/cm?) |
| Max rpm | = | 265.258 rpm |
| Max load | = | 5504.587 kg |
| Housing Tolerance | = | H7 |
