SKU: WRE80-EU
WRE80 Heavy Duty Shaft Snap Ring for 80 mm Diameter Shafts / 77.8 Groove Depth
- Regular price
- €4.52 ex VAT
- Sale price
- €4,52
- Regular price
-
In stock
Quantity Price Breaks
4
€4.02
9
€3.80
14
€3.75
19
€3.71
49
€3.66
74
€3.62
99
€3.39
199
€3.34
249
€3.30
499
€3.25
999
€3.16
SKU:
WRE80-EU
WRE80 Heavy Duty Shaft Snap Ring for 80 mm Diameter Shafts / 77.8 Groove Depth
- Regular price
- €4.52 ex VAT
- Sale price
- €4,52
- Regular price
-
Description
Heavy Duty Shaft Snap Rings: Designed to support heavy end loading these heavy-duty shaft snap rings can be fitted in the confidence that they will stay put under extreme loads. Ideal as backstops for bearings or just as backstops for sliding shaft elements. Typically found in, but not limited to heavy industrial and hydraulic applications.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52
Benefits: Strong, Heavy Duty, Reliable

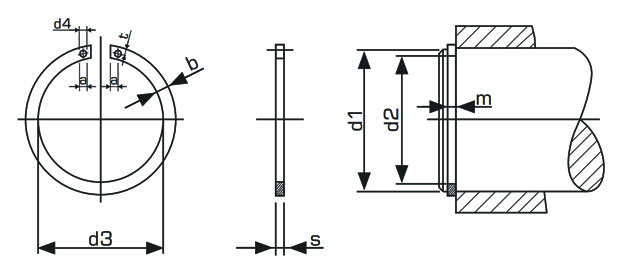

Technical
| Nominal Shaft Diameter d1 | = | 80mm |
| Inside Diameter d3 | = | 76.6mm |
| Approx Outside Dia | = | 86.2mm |
| Face width b | = | 4.8mm |
| Thickness s | = | 2mm |
| Groove Diameter d2 | = | 77.8mm |
| Max rpm | = | 3180 rpm< |
| sup> | = | 1< |
| /sup> | = | |
| Weight | = | 0.01905 kg |
