SKU: WS020-JUB

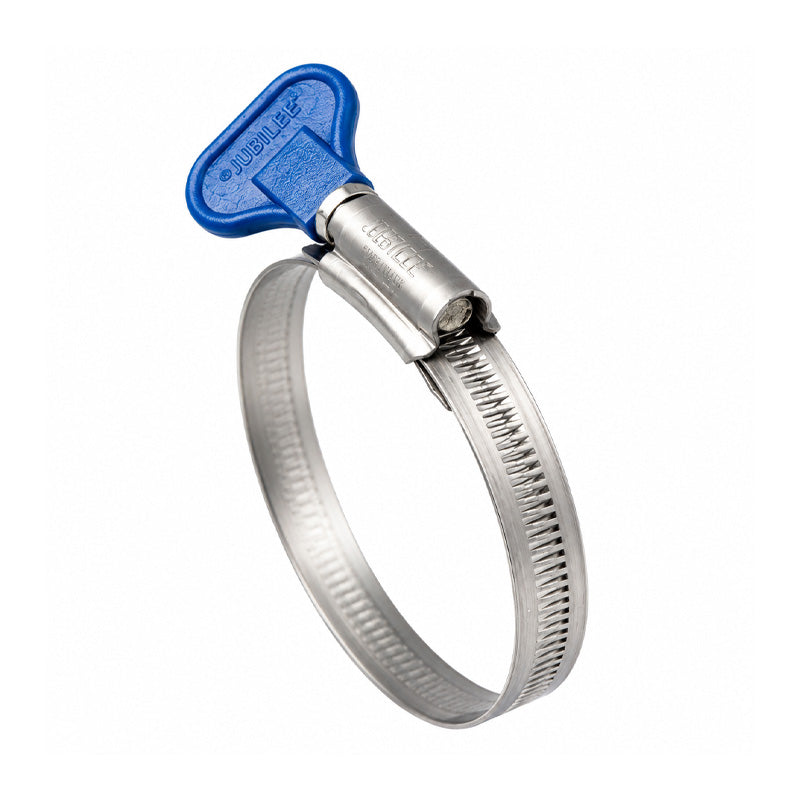

WS020 Zinc Plated Steel Jubilee Wingspade Clip Adjustment Range 13mm - 20mm Band Width 9.9mm
- Regular price
- €85.81 ex VAT
- Sale price
- €85,81
- Regular price
-
Not in stock
Quantity Price Breaks
3
€76.37
5
€72.08
9
€71.22
19
€70.36
49
€69.51
74
€68.65
99
€64.36
199
€63.50
249
€62.64
499
€61.78
999
€60.07
SKU:
WS020-JUB
WS020 Zinc Plated Steel Jubilee Wingspade Clip Adjustment Range 13mm - 20mm Band Width 9.9mm
- Regular price
- €85.81 ex VAT
- Sale price
- €85,81
- Regular price
-
Description
Zinc Plated Steel Jubilee Wingspade Clips: Jubilee Wingspade® Clips have a thumb screw for fitting easily by hand. Suitable where repeated tightening/loosening/removing of the clip are required such as garden hoses and other domestic applications.
Benefits: Easy to fit by hand using thumb and forefinger.
Technical
| Adjustment Range | = | 13mm - 20mm |
| Band Width (+/- 0.1) | = | 9.9mm |
| Band Thickness (+/- 0.1) | = | 0.762mm |
| Recommended Torque | = | 3.4Nm |
| Maximum Torque | = | 4.5Nm |
| Maximum Pressure | = | 182 Psi |
