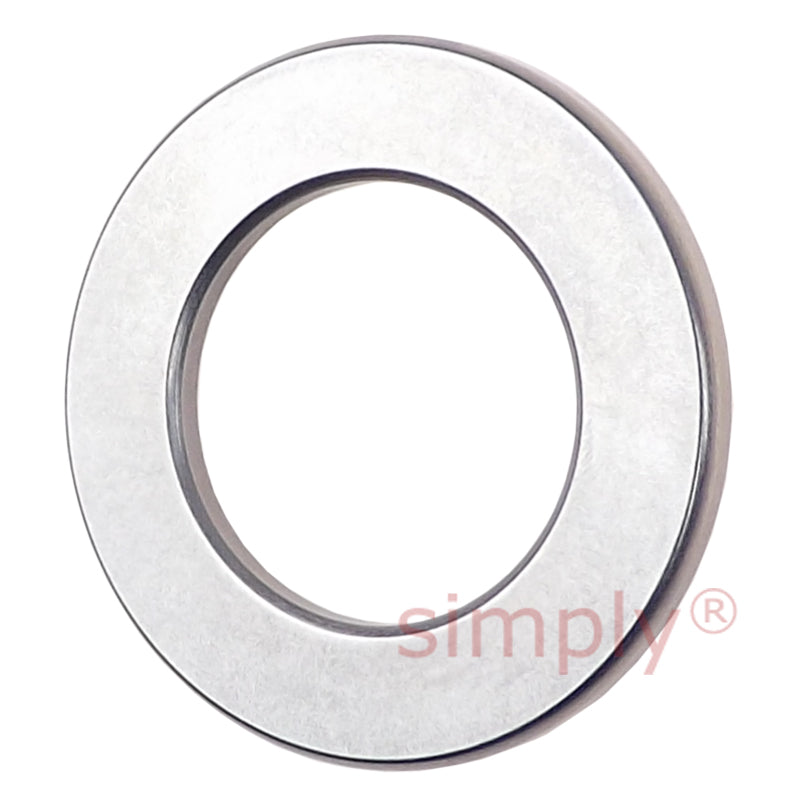

Major Brand WS81113 Shaft Washer Series WS 65x90x5.25mm

SKU: WS81113-MB

Major Brand WS81113 Shaft Washer Series WS 65x90x5.25mm

€27.22 ex VAT
€27,22
ex VAT
In stock

Quantity Price Breaks

10 €24.23
19 €22.86
29 €22.59
39 €22.32
49 €22.05
74 €21.78
99 €20.42
199 €20.14
249 €19.87
499 €19.60
999 €19.05
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand WS81113 Shaft Washer Series WS 65x90x5.25mm
SKU: WS81113-MB

Major Brand WS81113 Shaft Washer Series WS 65x90x5.25mm

€27.22 ex VAT
€27,22
ex VAT

Description

WS Type Housing Washers: An accurately machined washer component to be used with needle roller thrust assemblies providing precise centering of the housing or raceway washer. These are thicker than the LS and AS series of washers thus providing a very rigid assembly.
Benefits: Accurately machined, provides centering & rigidity, thicker cross section, inexpensive cost effective solution.

Technical

d = 65mm
d1 = 90mm
D = 90mm
D1 = 67mm
B = 5.25mm
r1r2 = 1mm
Weight = 115 g
