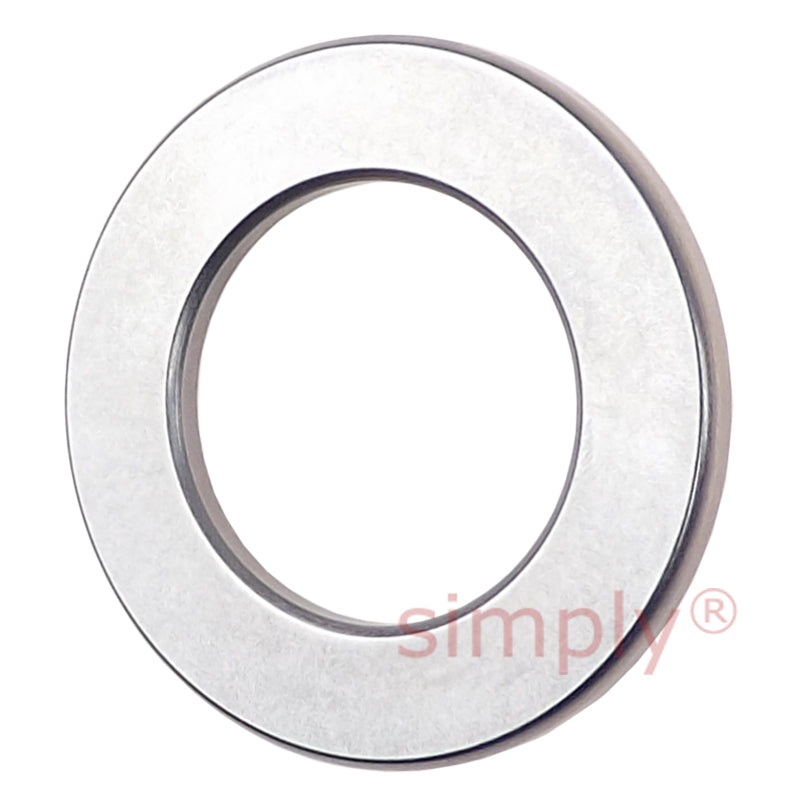

Major Brand WS81128 Shaft Washer Series WS 140x180x9.5mm

SKU: WS81128-MB

Major Brand WS81128 Shaft Washer Series WS 140x180x9.5mm

€174.09 ex VAT
€174,09
ex VAT
Not in stock

Quantity Price Breaks

10 €154.94
19 €146.24
29 €144.49
39 €142.75
49 €141.01
74 €139.27
99 €130.57
199 €128.83
249 €127.09
499 €125.34
999 €121.86
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand WS81128 Shaft Washer Series WS 140x180x9.5mm
SKU: WS81128-MB

Major Brand WS81128 Shaft Washer Series WS 140x180x9.5mm

€174.09 ex VAT
€174,09
ex VAT

Description

WS Type Housing Washers: An accurately machined washer component to be used with needle roller thrust assemblies providing precise centering of the housing or raceway washer. These are thicker than the LS and AS series of washers thus providing a very rigid assembly.
Benefits: Accurately machined, provides centering & rigidity, thicker cross section, inexpensive cost effective solution.

Technical

d = 140mm
d1 = 178mm
D = 180mm
D1 = 142mm
B = 9.5mm
r1r2 = 1mm
Weight = 750 g
