SKU: 06B-2-BB-NO12-RENOLD
Renold Blue Box 06B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 3/8 inch Pitch
- Regular price
- €14.76 ex VAT
- Sale price
- €14,76
- Regular price
-
In stock
Quantity Price Breaks
2
€13.14
5
€12.40
10
€12.25
29
€12.10
49
€11.96
75
€11.81
100
€11.07
200
€10.92
250
€10.77
500
€10.63
1000
€10.33
SKU:
06B-2-BB-NO12-RENOLD
Renold Blue Box 06B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 3/8 inch Pitch
- Regular price
- €14.76 ex VAT
- Sale price
- €14,76
- Regular price
-
Description

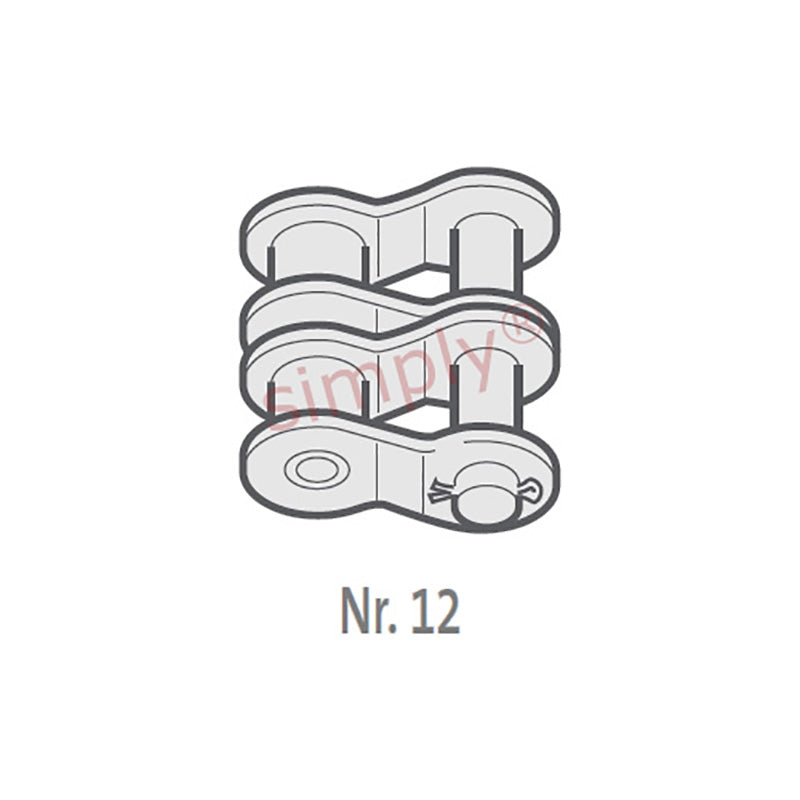

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 5.72mm |
| Roller Diameter max (C) | = | 6.35mm |
| Plate Height max (D) | = | 8.2mm |
| Plate Width Inner max (E) | = | 1.29mm |
| Plate Width Outer max (F) | = | 1.04mm |
| Pin Diameter max (G) | = | 3.28mm |
| Pin Length max (H1) | = | 23mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| ISO606 Tensile Strength min | = | 16900 N |
| Weight | = | 0.002kg/m |
