SKU: 06B-3-SD-NO26-RENOLD
Renold SD 06B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- €6.90 ex VAT
- Sale price
- €6,90
- Regular price
-
In stock
Quantity Price Breaks
2
€6.14
5
€5.80
10
€5.73
29
€5.66
49
€5.59
75
€5.52
100
€5.18
200
€5.11
250
€5.04
500
€4.97
1000
€4.83
SKU:
06B-3-SD-NO26-RENOLD
Renold SD 06B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- €6.90 ex VAT
- Sale price
- €6,90
- Regular price
-
Description

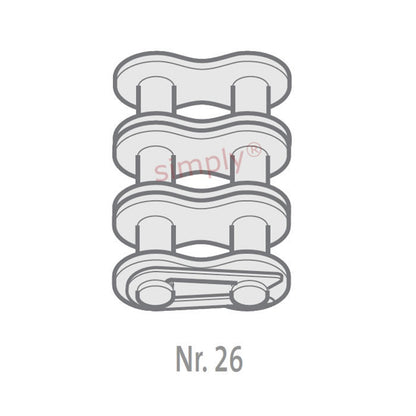

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical

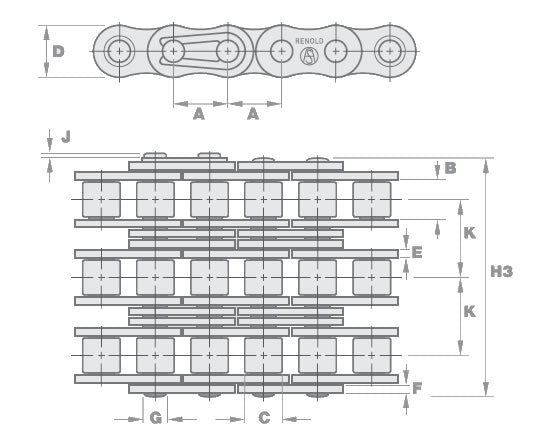

| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 5.72mm |
| Roller Diameter max (C) | = | 6.35mm |
| Plate Height max (D) | = | 8.2mm |
| Plate Width Inner max (E) | = | 1.25mm |
| Plate Width Outer max (F) | = | 1mm |
| Pin Diameter max (G) | = | 3.28mm |
| Pin Length max (H1) | = | 35.6mm |
| Connecting Link Extension max (J) | = | 3mm |
| ISO606 Tensile Strength min | = | 26250 N |
| Weight | = | 0.003kg/m |
