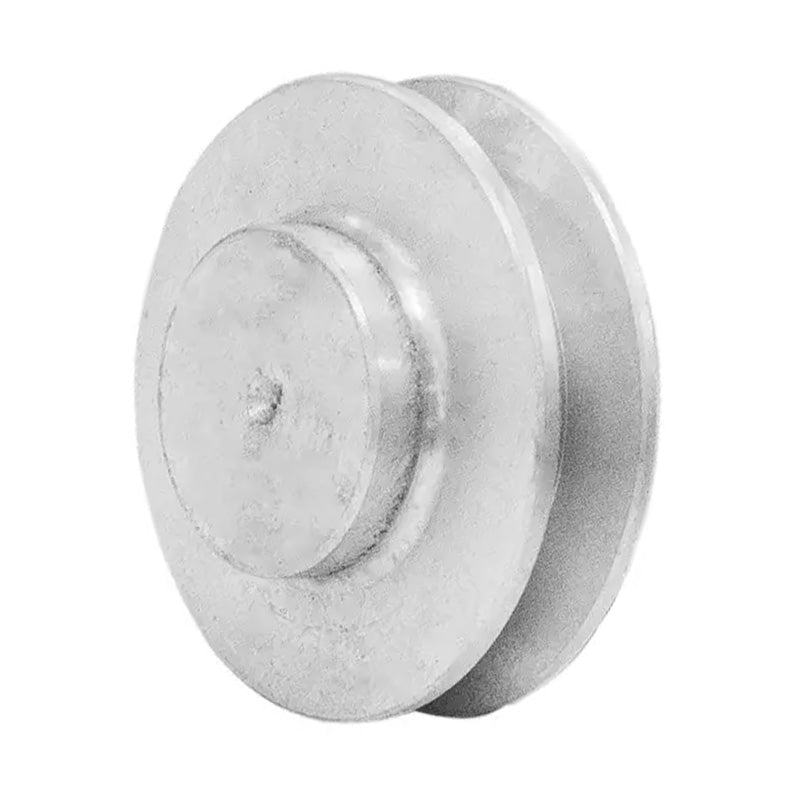

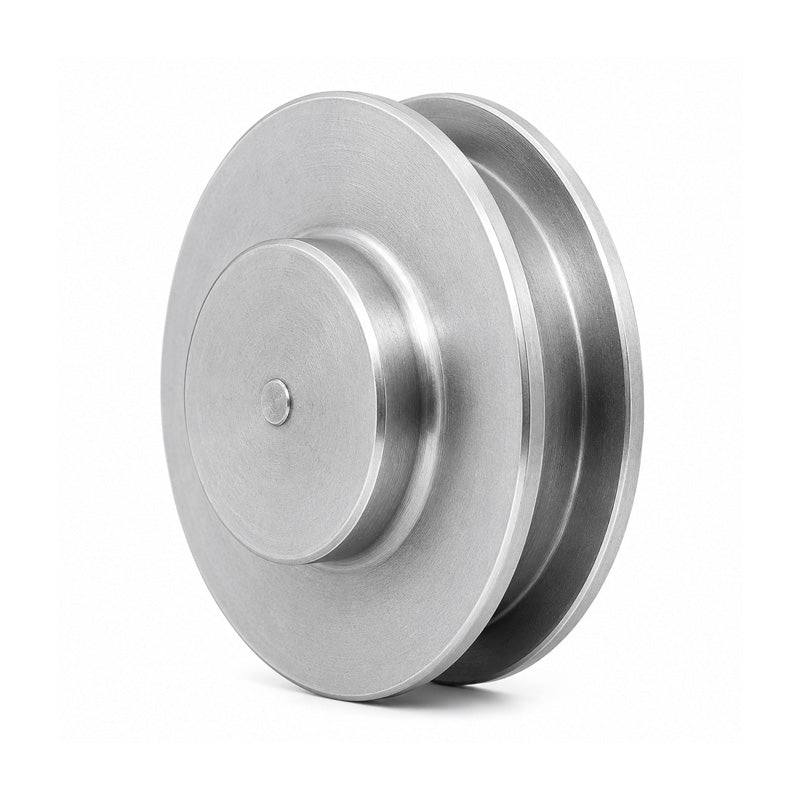

SPZ Section Un-Bored Aluminium Pulley with 1 Groove 70mm Pitch Diameter

SKU: 070ASPZ1-ALUM

SPZ Section Un-Bored Aluminium Pulley with 1 Groove 70mm Pitch Diameter

€18.34 ex VAT
€18,34
ex VAT
In stock

Quantity Price Breaks

3 €16.32
5 €15.41
9 €15.22
19 €15.04
49 €14.86
74 €14.67
99 €13.76
199 €13.57
249 €13.39
499 €13.20
999 €12.84
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SPZ Section Un-Bored Aluminium Pulley with 1 Groove 70mm Pitch Diameter
SKU: 070ASPZ1-ALUM

SPZ Section Un-Bored Aluminium Pulley with 1 Groove 70mm Pitch Diameter

€18.34 ex VAT
€18,34
ex VAT

Description

SPZ Section Aluminium Pulley Un-Bored: Powerdrive aluminium pulleys are used with v-belts, they are designed with a drill-able centre, pre-marked with a centre point enabling the user to create a precise custom bore to suit individual needs. Manufactured from high quality aluminium, Powerdrive pulleys are lightweight while being hard-wearing and incredibly reliable. Powerdrive aluminium pulleys are perfectly suited for applications such as air compressors generators or printing machinery.
Benefits: Powerdrive aluminium pulleys are available with pitch circle diameters (PCD) ranging from 50mm - 300mm and are made using 356.1 aluminium alloy.

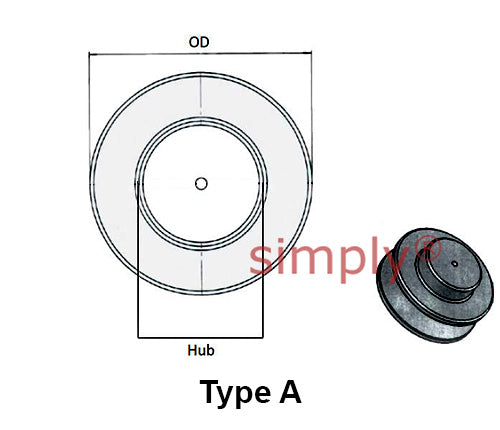

Technical

Number of Grooves = 1
Outer Diameter = 75mm
Pitch = 70mm
Hub Diameter = 39mm
Hub Width = 25mm
Weight = 0.185kg
