SKU: 08B-1-SNX-NO30-RENOLD
Renold SYNO 08B-1-NO30 BS Simplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- €27.88 ex VAT
- Sale price
- €27,88
- Regular price
-
Not in stock
Quantity Price Breaks
2
€24.81
5
€23.42
10
€23.14
29
€22.86
49
€22.58
75
€22.30
100
€20.91
200
€20.63
250
€20.35
500
€20.07
1000
€19.52
SKU:
08B-1-SNX-NO30-RENOLD
Renold SYNO 08B-1-NO30 BS Simplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- €27.88 ex VAT
- Sale price
- €27,88
- Regular price
-
Description
| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical

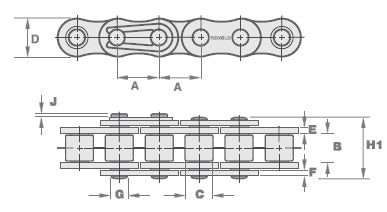

| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H1) | = | 16.5mm |
| Connecting Link Extension max (J) | = | 2mm |
| ISO606 Tensile Strength min | = | 17800 N |
| Weight | = | 0.003kg/m |
