SKU: 08B-2-SD-NO12-RENOLD
Renold SD 08B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- €8.47 ex VAT
- Sale price
- €8,47
- Regular price
-
In stock
Quantity Price Breaks
2
€7.54
5
€7.11
10
€7.03
29
€6.95
49
€6.86
75
€6.78
100
€6.35
200
€6.27
250
€6.18
500
€6.10
1000
€5.93
SKU:
08B-2-SD-NO12-RENOLD
Renold SD 08B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- €8.47 ex VAT
- Sale price
- €8,47
- Regular price
-
Description

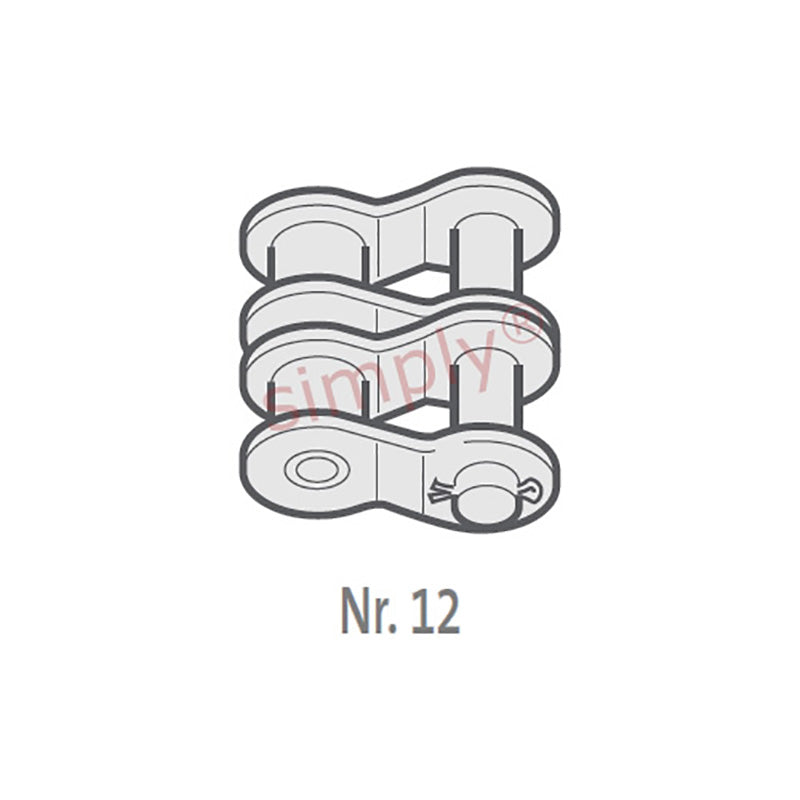

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.8mm |
| Plate Width Inner max (E) | = | 1.5mm |
| Plate Width Outer max (F) | = | 1.5mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H2) | = | 31mm |
| Connecting Link Extension max (J) | = | 1.1mm |
| Transverse Pitch nom (K) | = | 13.92mm |
| ISO606 Tensile Strength min | = | 31100 N |
| Weight | = | 0.006kg/m |
