SKU: 08B-2-SYN-NO26-RENOLD
Renold Synergy 08B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch - Allow 7-10 Days
- Regular price
- €19.13 ex VAT
- Sale price
- €19,13
- Regular price
-
In stock
Quantity Price Breaks
2
€17.03
5
€16.07
10
€15.88
29
€15.69
49
€15.50
75
€15.30
100
€14.35
200
€14.16
250
€13.96
500
€13.77
1000
€13.39
SKU:
08B-2-SYN-NO26-RENOLD
Renold Synergy 08B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch - Allow 7-10 Days
- Regular price
- €19.13 ex VAT
- Sale price
- €19,13
- Regular price
-
Description

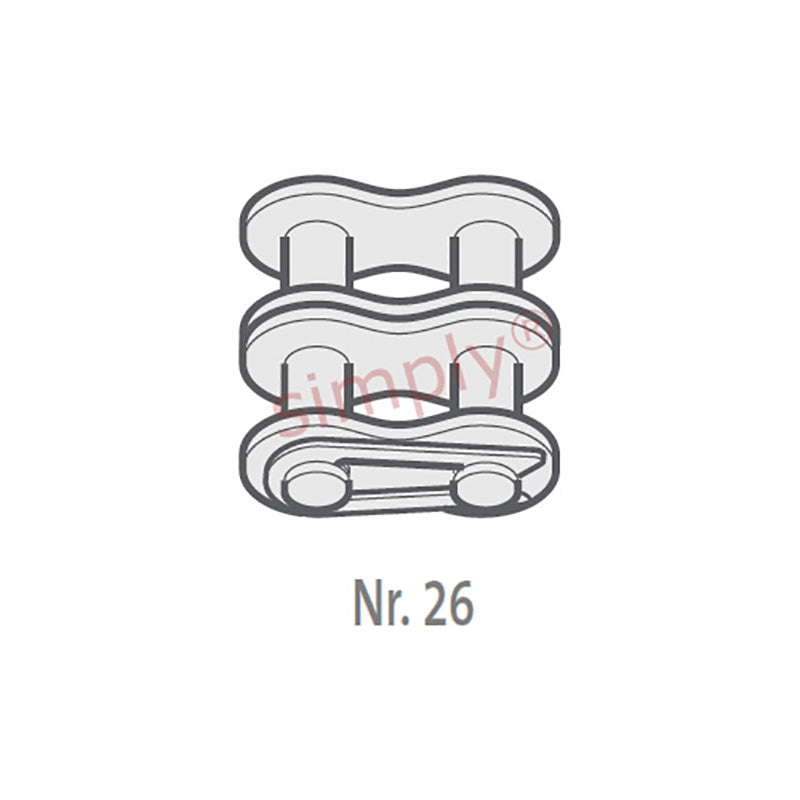

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H2) | = | 30.4mm |
| Connecting Link Extension max (J) | = | 2mm |
| Transverse Pitch nom (K) | = | 13.92mm |
| ISO606 Tensile Strength min | = | 31100 N |
| Weight | = | 0.006kg/m |
