SKU: 100-3-SYN-NO12-RENOLD
Renold Synergy 100-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
- Regular price
- €357.84 ex VAT
- Sale price
- €357,84
- Regular price
-
Not in stock
Quantity Price Breaks
2
€318.48
5
€300.59
10
€297.01
29
€293.43
49
€289.85
75
€286.27
100
€268.38
200
€264.80
250
€261.22
500
€257.64
1000
€250.49
SKU:
100-3-SYN-NO12-RENOLD
Renold Synergy 100-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
- Regular price
- €357.84 ex VAT
- Sale price
- €357,84
- Regular price
-
Description
| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical

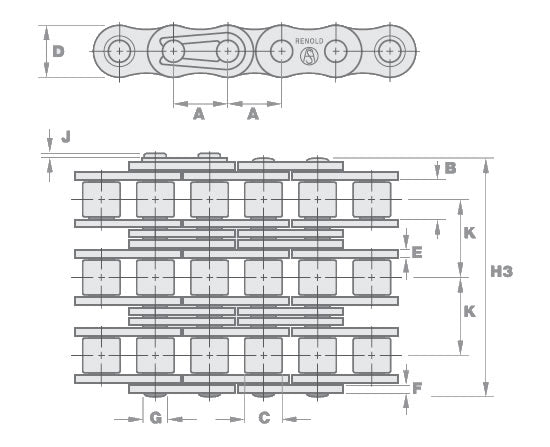

| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 18.9mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 30.17mm |
| Plate Width Inner max (E) | = | 4.06mm |
| Plate Width Outer max (F) | = | 4.06mm |
| Pin Diameter max (G) | = | 9.54mm |
| Pin Length max (H2) | = | 111.2mm |
| Connecting Link Extension max (J) | = | 4.2mm |
| Transverse Pitch nom (K) | = | 35.76mm |
| ISO606 Tensile Strength min | = | 261000 N |
| Weight | = | 0.08kg/m |
