SPZ Section Un-Bored Aluminium Pulley with 1 Groove 100mm Pitch Diameter

SKU: 100ASPZ1-ALUM

SPZ Section Un-Bored Aluminium Pulley with 1 Groove 100mm Pitch Diameter

€22.28 ex VAT
€22,28
ex VAT
In stock

Quantity Price Breaks

3 €19.83
5 €18.72
9 €18.49
19 €18.27
49 €18.05
74 €17.82
99 €16.71
199 €16.49
249 €16.26
499 €16.04
999 €15.60
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SPZ Section Un-Bored Aluminium Pulley with 1 Groove 100mm Pitch Diameter
SKU: 100ASPZ1-ALUM

SPZ Section Un-Bored Aluminium Pulley with 1 Groove 100mm Pitch Diameter

€22.28 ex VAT
€22,28
ex VAT

Description

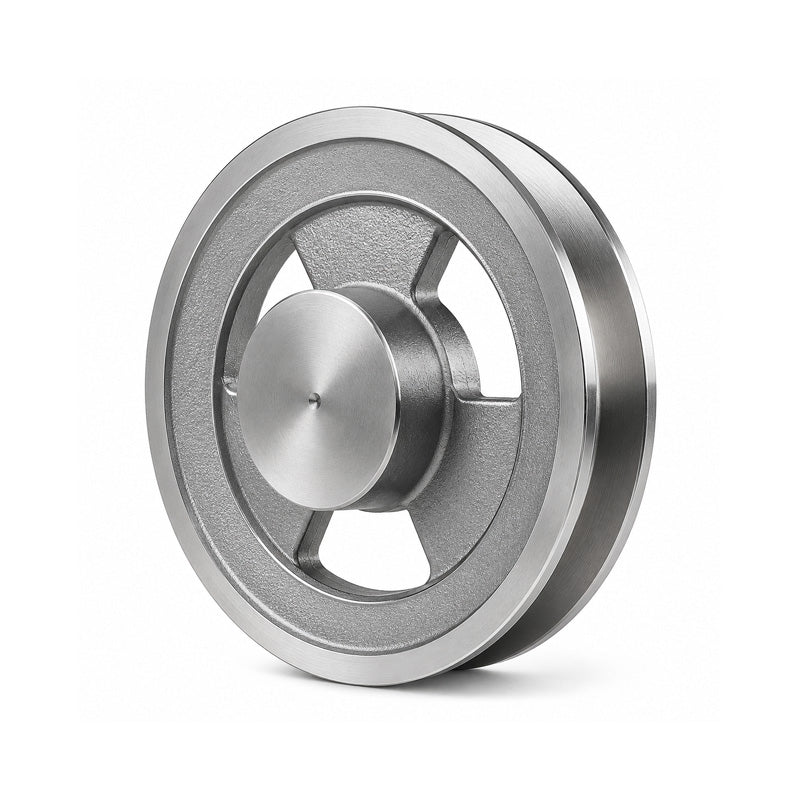

SPZ Section Aluminium Pulley Un-Bored: Powerdrive aluminium pulleys are used with v-belts, they are designed with a drill-able centre, pre-marked with a centre point enabling the user to create a precise custom bore to suit individual needs. Manufactured from high quality aluminium, Powerdrive pulleys are lightweight while being hard-wearing and incredibly reliable. Powerdrive aluminium pulleys are perfectly suited for applications such as air compressors generators or printing machinery.
Benefits: Powerdrive aluminium pulleys are available with pitch circle diameters (PCD) ranging from 50mm - 300mm and are made using 356.1 aluminium alloy.

Technical

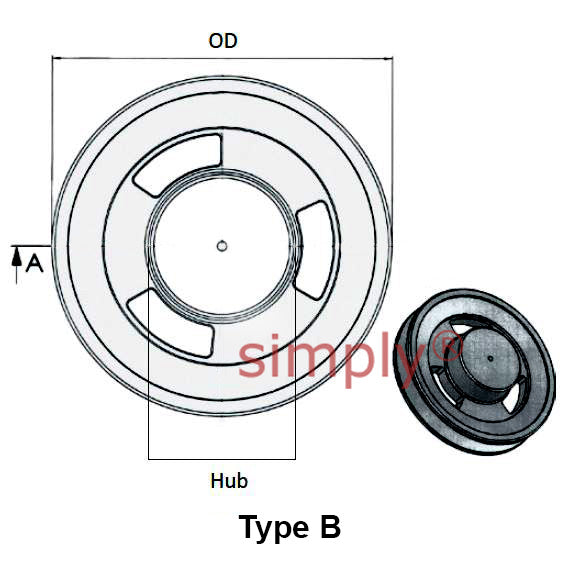

Number of Grooves = 1
Outer Diameter = 105mm
Pitch = 100mm
Hub Diameter = 50mm
Hub Width = 26mm
Weight = 0.26kg
