SKU: 100AT10/730/G3
100AT10/730/G3 ContiTech Gen III Synchroflex Timing Belt 100mm Width 10mm Pitch 73 Teeth
- Regular price
- €254.98 ex VAT
- Sale price
- €254,98
- Regular price
-
Quantity Price Breaks
100AT10/730/G3 ContiTech Gen III Synchroflex Timing Belt 100mm Width 10mm Pitch 73 Teeth
- Regular price
- €254.98 ex VAT
- Sale price
- €254,98
- Regular price
-
Description
AT Generation 3 SYNCHROFLEX® Timing Belts: This belt is manufactured by ContiTech, specialists in rubber and plastics technology. This Synchroflex belt is a truly endless belt, suitable for AT pulleys.
The Generation 3 (Gen III) Synchroflex belt construction consists of high-tensile steel cord tension members and wear-resistant polyurethane which makes this belt extremely durable and provides high performance. Also, this belt provides an impressive 25% increase in power transmission when compared to the AT/ATP standard.
Benefits: Low elastic elongation, high flank load capacity, 25% more power than standard AT and high-performance polyurethane & steel reinforced.

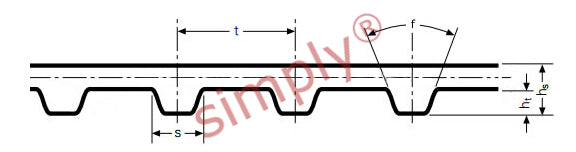

Technical
| No of Teeth | = | 73 |
| Belt Width | = | 100mm |
| Belt Pitch | = | 10mm (AT10) |
| Belt Length | = | 730mm |
| Belt Thickness (hs) | = | 2.5mm |
| Tooth Height (ht) | = | 2.5mm |
| Tooth Pitch (t) | = | 10mm |
| Flank Angle (f) | = | 50 deg |
| Tension Member Loadings | = | 22000 N |
| Belt Weight (per metre) | = | 0.73kg |
