SKU: 11163/11300B/Q-SKF

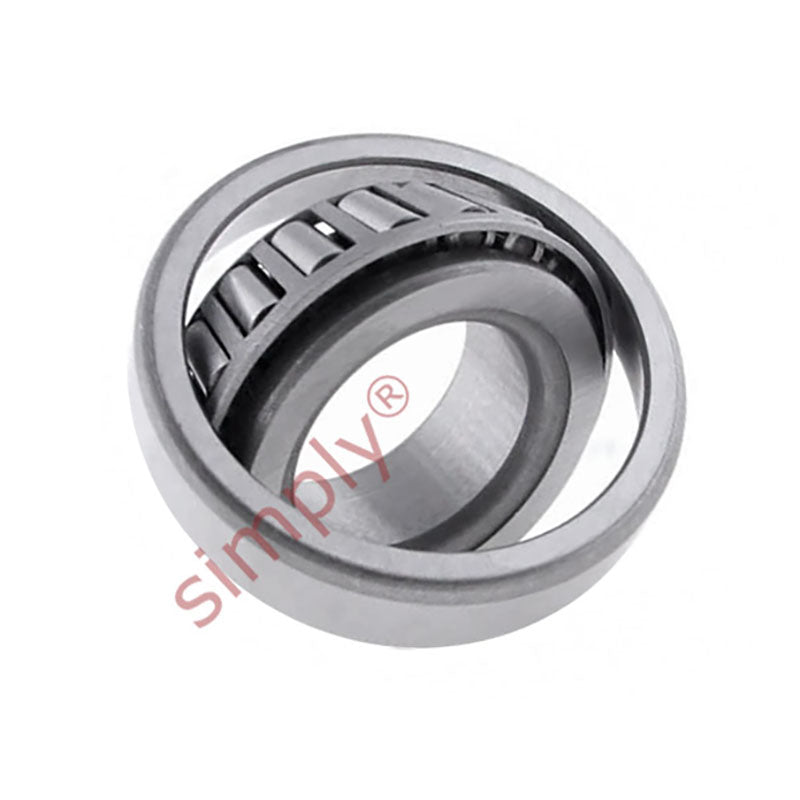

SKF 11163/11300B/Q Imperial Taper Roller Bearing 1.625x3x0.709 inches

Name: SKF 11163/11300B/Q Imperial Taper Roller Bearing 1.625x3x0.709 inches
Brand: SKF
SKU: 11163/11300B/Q-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 41.28mm = 1.625 (1-5/8) inch
Outside Diameter:: 76.2mm = 3 inch
Width:: 18.01mm = 0.709 inch
Seals / Shields:: None

Technical

d	41.275mm
D	76.2mm
T	18.009mm
Dynamic load	45.7 kN
Static load	56 kN
Fatigue load limit Pu	6.1 kN
Reference speed	6700 rpm
Limiting speed	9500 rpm
Weight	0.34 kg
d1	58.1mm
B	17.384mm
C	14.288mm
r1r2 min	0.8mm
r3r4 min	1.5mm
a	17mm
da max	50mm
db min	46mm
Da min	65mm
Da max	68mm
Db min	71mm
Ca min	3mm
Cb min	4.5mm
ra max	0.8mm
rb max	1.5mm
Calculation factor e	0.48
Calculation factor Y	1.25
Calculation factor Y0	0.7
