SKU: 112045/112085-GAMET

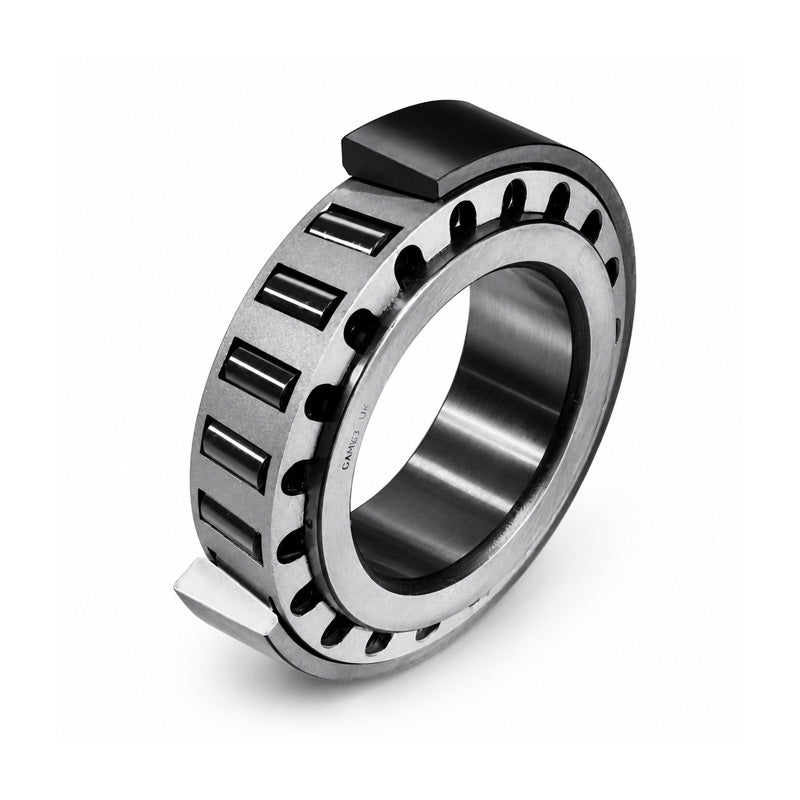

Gamet 112045/112085 Super Precision Tapered Roller Bearing Plain Cup Type 45x85x24.5mm
Gamet 112045/112085 Super Precision Tapered Roller Bearing Plain Cup Type 45x85x24.5mm
Regular price
€801,48
ex VAT
Regular price
Sale price
€801,48
ex VAT
In stock
Price Break
4+
€609,09
9+
€574,87
19+
€568,03
29+
€561,18
39+
€554,34
49+
€547,50
59+
€513,28
69+
€506,43
79+
€499,59
89+
€492,75
99+
€479,06
Quantity
Couldn't load pickup availability
Description
Description
|
Super Precision Tapered Roller Bearing Plain Cup Type: Designed and manufactured in the UK by one of the worlds leading Precision Bearings companies. Made from high quality bearing materials, the basic single row bearing can be used in light to medium loaded applications, and provides a simple, cost-effective arrangement. Cone Bore Run-out tolerances range from 0.5 microns to 1.5 microns. Quality assured to BS EN ISO 9001:2000 standards. Benefits: Cost-effective, high quality bearing materials, quality assured. |
- Brand / Quality:
- Gamet - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 24.5mm

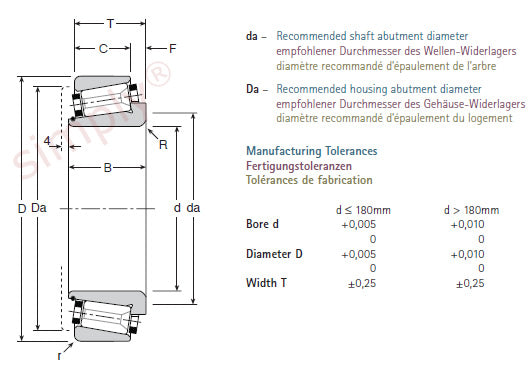

Technical
Technical
| d | 45.000mm |
|---|---|
| D | 85.000mm |
| T | 20.63mm |
| C | 17.46mm |
| B | 24.50mm |
| F | 3.17mm |
| da | 55mm |
| Da | 76mm |
| r | 2.00mm |
| R | 2.00mm |
| Radial static stiffness | 44 daN/µ |
| Axial static stiffness | 7 daN/µ |
| Radial basic rating 10,000hrs@500rpm | 1145 daN |
| Axial basic rating 10,000hrs@500rpm | 600 daN |
| Max speed | 8200 rpm |
| Weight | 0.450kg |
| Cone | 112045 |
| Cup | 112085 |
