SKU: 1135-1.3/8DEC-RHP

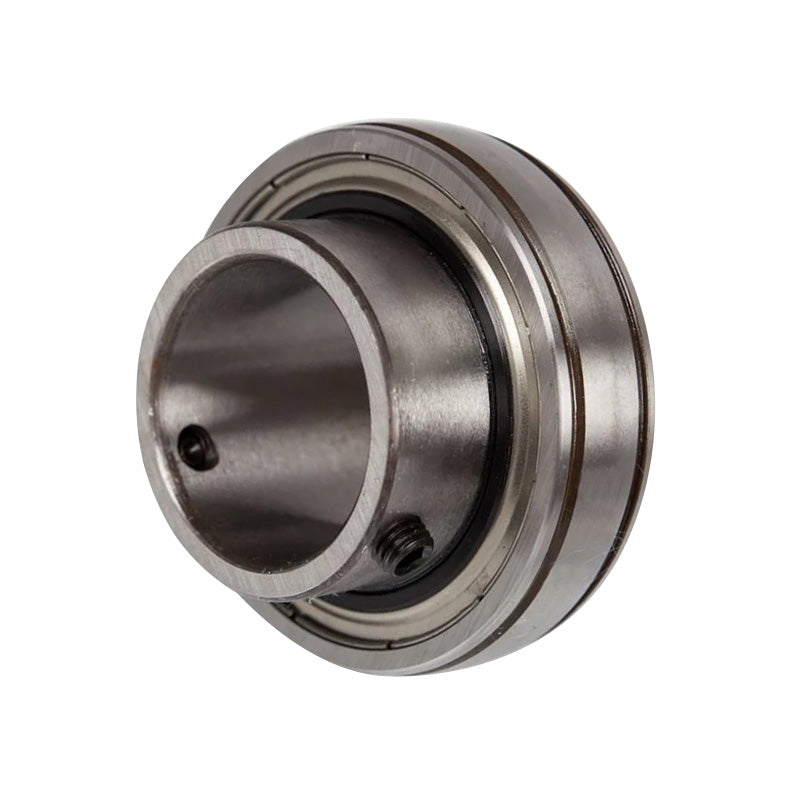

RHP 1135-1-3/8DEC Parallel Outer Full Width Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter

Name: RHP 1135-1-3/8DEC Parallel Outer Full Width Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter
Brand: RHP
SKU: 1135-1.3/8DEC-RHP
Price: 53.30 EUR
Availability: InStock

€53,30 ex VAT

Sale Sold out

In stock

Price Break

10+ €40,51

20+ €38,23

30+ €37,78

40+ €37,32

50+ €36,87

75+ €36,41

100+ €34,14

200+ €33,68

250+ €33,23

500+ €32,77

1000+ €31,86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

RHP 1000-DEC Series: Full width bearing insert with parallel outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, eccentric collar fixing

Brand / Quality:: RHP - High Quality
Inside Diameter:: 34.93mm = 1.375 (1-3/8) inch
Outside Diameter:: 72mm
Style:: 1135

Technical

Bore	1-3/8 inch
D	2.8346 inch
C	0.669 inch
B3	2.015 inch
s2	0.744 inch
d2	2.188 inch
r	0.039 inch
Dynamic load Cr	25700 N
Static load Cor	15300 N
Rec max speed	4500 rpm
Weight	0.7 kg
