SKU: 1145-1.7/16K-RHP

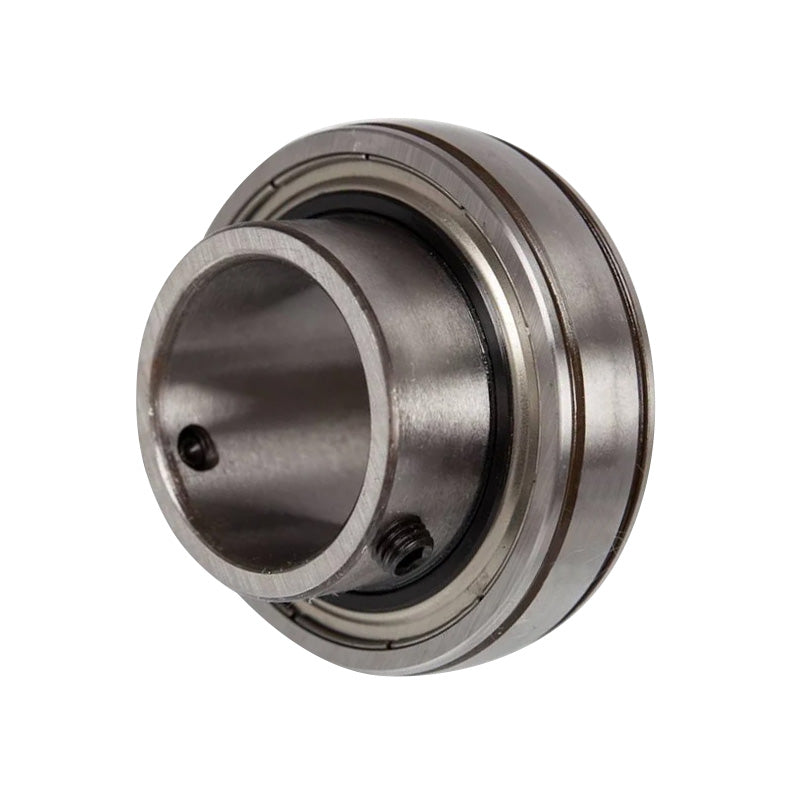

RHP 1145-1-7/16K Parallel Outer Taper Bore Bearing Insert and H309-1-7/16 Sleeve with 1-7/16 inch Shaft 85mm Outside Diameter
RHP 1145-1-7/16K Parallel Outer Taper Bore Bearing Insert and H309-1-7/16 Sleeve with 1-7/16 inch Shaft 85mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP 1100K Series: Taper bore bearing insert with parallel outer race. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required. you will need a taper sleeve (available separately) this makes the job of fitting simple as the bearing can be positioned easily prior to locking to the shaft. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 85mm
- Style:
- 1145
Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| D | 3.3465mm |
| C | 0.748mm |
| B4 | 0.906mm |
| B5 | 1.535mm |
| B6 | 0.433mm |
| d | 1.7717mm |
| d1 | 2.256mm |
| d4 | 2.559mm |
| r | 0.039mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 0.64 kg |
| Supplied sleeve | H309-1-7/16 |
