SKU: 1150-1.3/4K-RHP

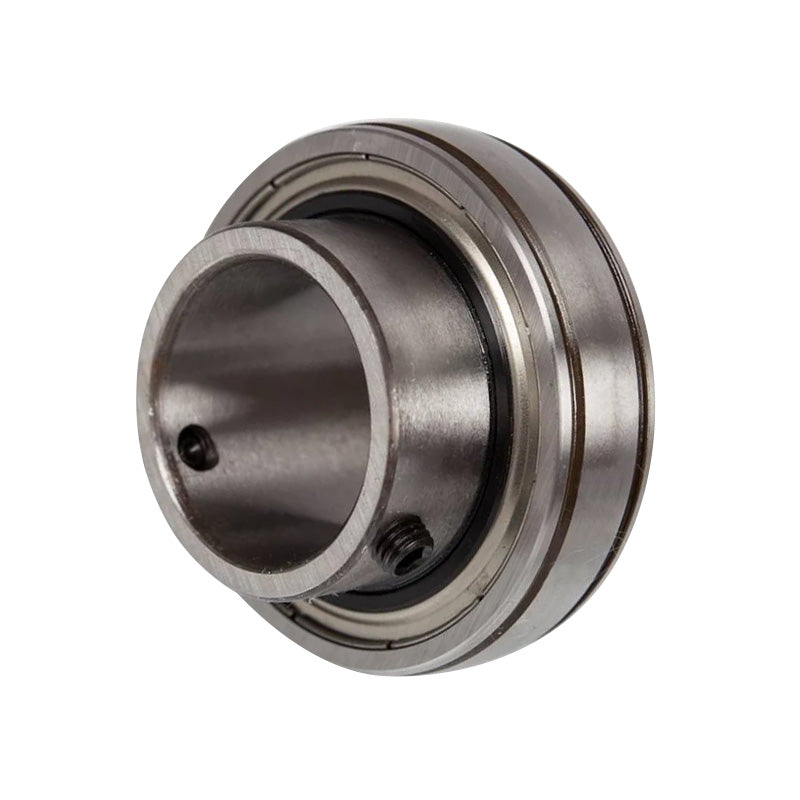

RHP 1150-1-3/4K Parallel Outer Taper Bore Bearing Insert and H310-1-3/4 Sleeve with 1-3/4 inch Shaft 90mm Outside Diameter

RHP 1150-1-3/4K Parallel Outer Taper Bore Bearing Insert and H310-1-3/4 Sleeve with 1-3/4 inch Shaft 90mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-3/4 inch
D 3.5433mm
C 0.787mm
B4 0.945mm
B5 1.654mm
B6 0.472mm
d 1.9685mm
d1 2.449mm
d4 2.756mm
r 0.39mm
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 0.75 kg
Supplied sleeve H310-1-3/4
