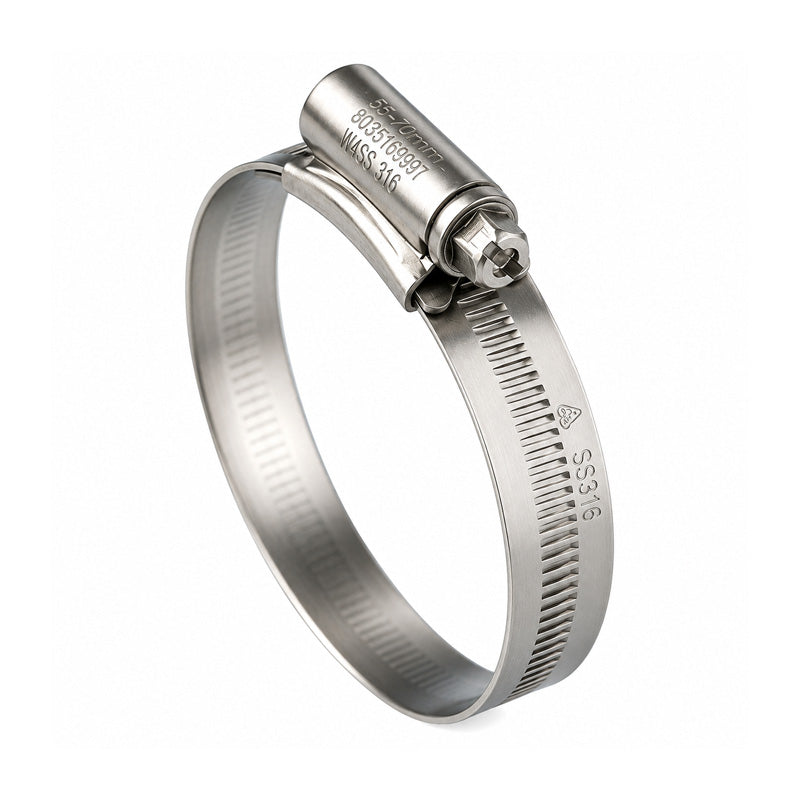

12.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 286mm - 318mm Band Width 13mm

SKU: 12.5SS316-JUB

12.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 286mm - 318mm Band Width 13mm

€13.26 ex VAT
€13,26
ex VAT
Not in stock

Quantity Price Breaks

3 €11.80
5 €11.14
9 €11.01
19 €10.87
49 €10.74
74 €10.61
99 €9.95
199 €9.81
249 €9.68
499 €9.55
999 €9.28
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
12.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 286mm - 318mm Band Width 13mm
SKU: 12.5SS316-JUB

12.5SS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 286mm - 318mm Band Width 13mm

€13.26 ex VAT
€13,26
ex VAT

Description

316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.

Technical

BS No. = 318
Adjustment Range = 286mm - 318mm
Adjustment Range = 11-1/4 - 12-1/2 inch
Band Width (+/- 0.1) = 13mm
Band Thickness (+/- 0.1) = 0.914mm
Recommended Torque = 5.9Nm
Maximum Torque = 7.9Nm
Maximum Pressure = 18 Psi
