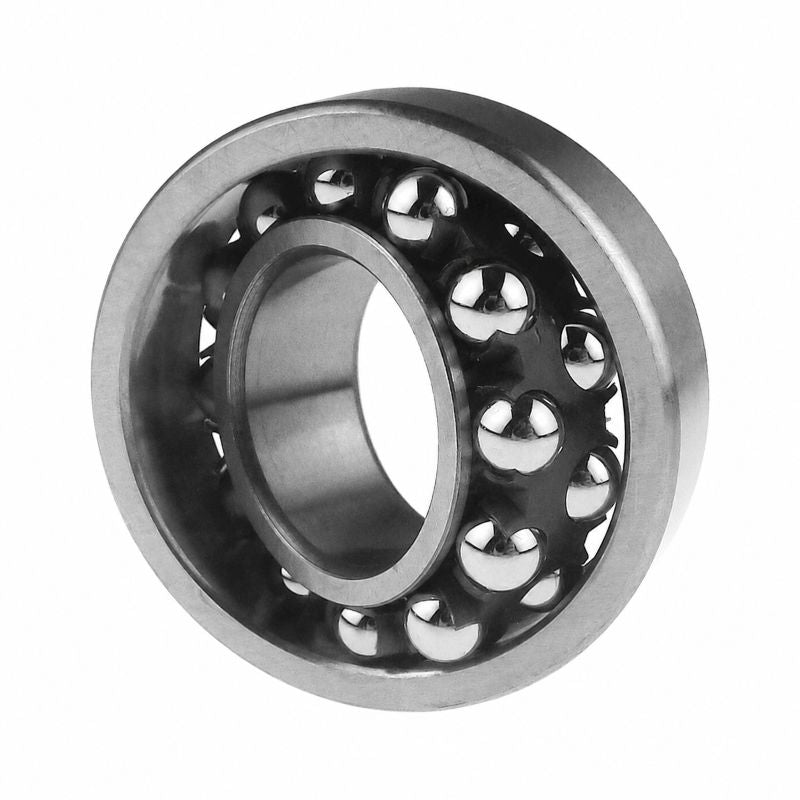

• 1206K Budget Open Self Aligning Ball Bearing with Taper Bore 30x62x16mm
1 1

SKU: 1206K-EU

1206K Budget Open Self Aligning Ball Bearing with Taper Bore 30x62x16mm

1206K Budget Open Self Aligning Ball Bearing with Taper Bore 30x62x16mm
€14,56 ex VAT
€14,56 ex VAT
Sale Sold out

Equivalent to: 1206EK

In stock

Price Break
10+ €11,07
19+ €10,44
29+ €10,32
39+ €10,20
49+ €10,07
74+ €9,95
99+ €9,33
199+ €9,20
249+ €9,08
499+ €8,95
999+ €8,70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SAB1_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
62mm
Width:
16mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Dimensions
d 30mm
D 62mm
B 16mm
D1 53mm
d1d2 40.1mm
r1r2 1mm
da min 35.6mm
Da max 56.4mm
ra max 1mm
--- Calculation Data
C 15.6kN
Co 4.655.4
Pu 0.24kN
ref 24000rpm
limit 15000rpm
e 0.25
Y1 2.5
Y2 3.9
Y0 2.5
--- Weights
kg 0.22
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H206+sleeve>H206</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS206+sleeve>HS206</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA206+sleeve>HA206</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE206+sleeve>HE206</a>
