SKU: 120x135x10.5_WP1_NAK

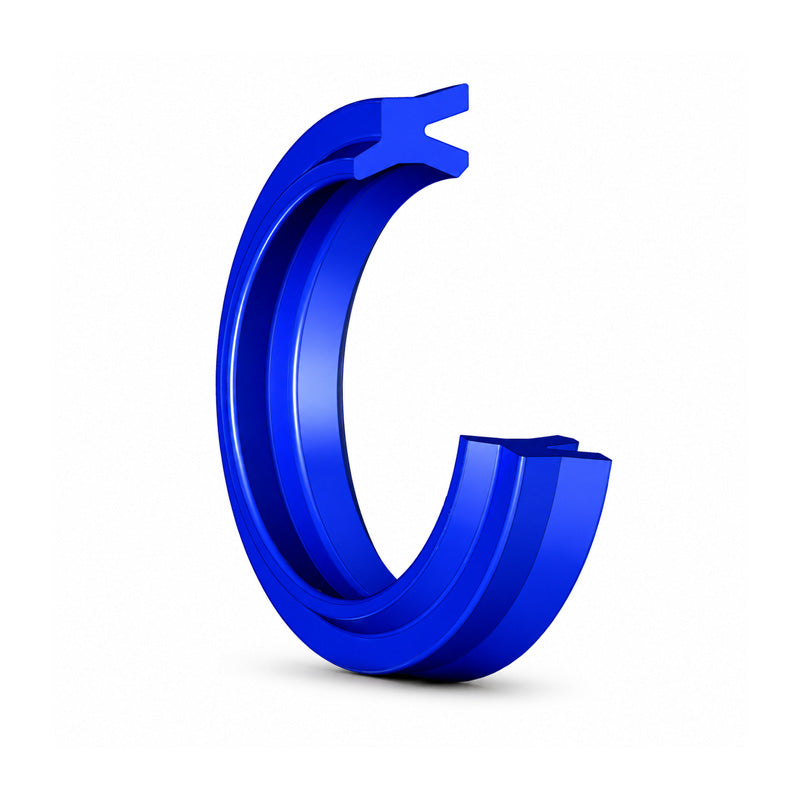

NAK 120x135x10.5mm WP1 Polyurethane Wiper Seal - Allow 7-10 Days
NAK 120x135x10.5mm WP1 Polyurethane Wiper Seal - Allow 7-10 Days
Out of stock
Share this product
Description
Description
NAK WP1 Wiper Seals: WP1 wiper seals are specialised dust-exclusion seals engineered to safeguard hydraulic and pneumatic systems against contamination. As the first variant in NAK's Type WP series, the WP1 is designed with a straightforward yet highly effective profile that ensures long-term protection in heavy-duty applications. The primary purpose of the WP1 is to wipe away dust, dirt, mud, moisture, and other external debris to help maintain hydraulic system efficiency.
Benefits: Durable, easy installation, reliable performance
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 135mm
- Length:
- 10.5mm
- Material:
- Polyurethane
- Style:
- WP1
- Colour:
- Blue
Technical
Technical
| d | 120mm |
|---|---|
| D | 135mm |
| L | 8.8mm |
| b | 3mm |
| t | 8.3mm |
| h | 10.5mm |
| c | 4mm |
| Inside Diameter Tolerance | f8 |
| Outside Diameter Tolerance | 0.008mm |
| Length Tolerance | 0.2mm |
| Running Speed v | 1 m/s |
| Temperature | -40 Deg C to +100 Deg C |
| Colour | Blue |
