SKU: 1217-12EC-RHP

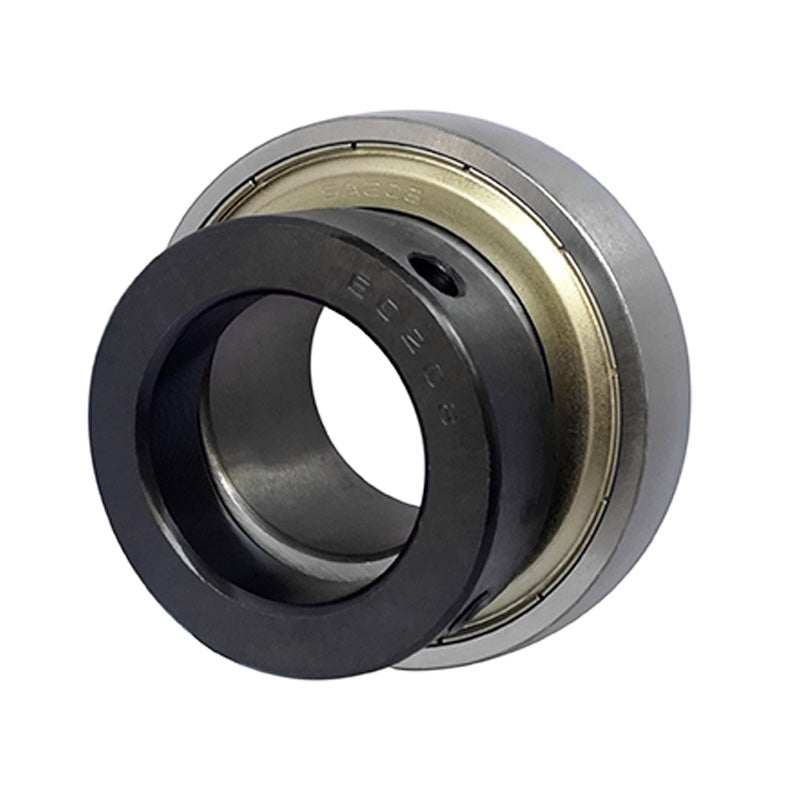

RHP 1217-12EC Spherical Outer Flat Back Bearing Insert with Eccentric Collar 12mm Bore 40mm Outside Diameter
RHP 1217-12EC Spherical Outer Flat Back Bearing Insert with Eccentric Collar 12mm Bore 40mm Outside Diameter
Out of stock
Description
Description
|
RHP 1200 EC Series: Flat back bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, eccentric collar fixing, sealed for life |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 40mm
- Style:
- 1217
Technical
Technical
| Bore | 12mm |
|---|---|
| D | 40mm |
| C | 12mm |
| B2 | 28.54mm |
| s1 | 6.55mm |
| d2 | 28.58mm |
| r | 0.6mm |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.15 kg |
