SKU: 12B-2-BB-NO12-RENOLD
Renold Blue Box 12B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 3/4 inch Pitch
- Regular price
- €20.67 ex VAT
- Sale price
- €20,67
- Regular price
-
Not in stock
Quantity Price Breaks
2
€18.40
5
€17.36
10
€17.16
29
€16.95
49
€16.74
75
€16.54
100
€15.50
200
€15.30
250
€15.09
500
€14.88
1000
€14.47
SKU:
12B-2-BB-NO12-RENOLD
Renold Blue Box 12B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 3/4 inch Pitch
- Regular price
- €20.67 ex VAT
- Sale price
- €20,67
- Regular price
-
Description

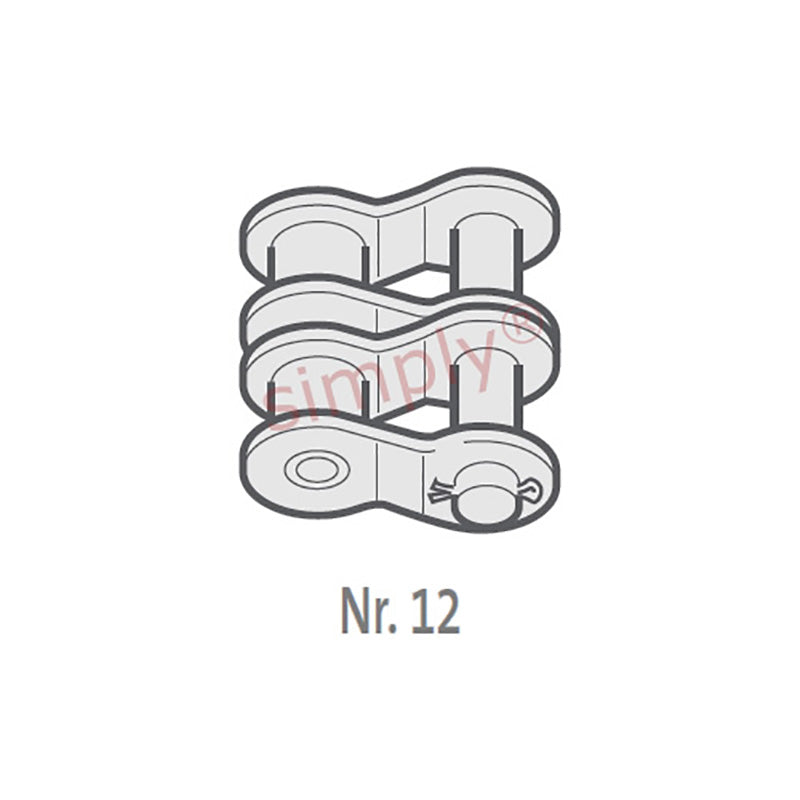

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 11.68mm |
| Roller Diameter max (C) | = | 12.07mm |
| Plate Height max (D) | = | 16mm |
| Plate Width Inner max (E) | = | 1.81mm |
| Plate Width Outer max (F) | = | 1.81mm |
| Pin Diameter max (G) | = | 5.72mm |
| Pin Length max (H1) | = | 41.4mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| ISO606 Tensile Strength min | = | 57800 N |
| Weight | = | 0.015kg/m |
