SKU: 12B-2-SYN-NO26-RENOLD
Renold Synergy 12B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
- Regular price
- €22.32 ex VAT
- Sale price
- €22,32
- Regular price
-
In stock
Quantity Price Breaks
2
€19.86
5
€18.75
10
€18.53
29
€18.30
49
€18.08
75
€17.86
100
€16.74
200
€16.52
250
€16.29
500
€16.07
1000
€15.62
SKU:
12B-2-SYN-NO26-RENOLD
Renold Synergy 12B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
- Regular price
- €22.32 ex VAT
- Sale price
- €22,32
- Regular price
-
Description

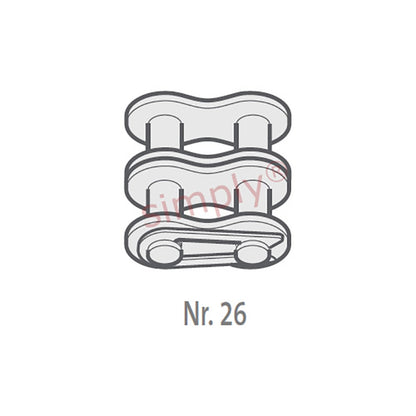

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 11.68mm |
| Roller Diameter max (C) | = | 12.07mm |
| Plate Height max (D) | = | 16mm |
| Plate Width Inner max (E) | = | 1.81mm |
| Plate Width Outer max (F) | = | 1.81mm |
| Pin Diameter max (G) | = | 5.72mm |
| Pin Length max (H2) | = | 41.4mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| Transverse Pitch nom (K) | = | 19.46mm |
| ISO606 Tensile Strength min | = | 57800 N |
| Weight | = | 0.015kg/m |
