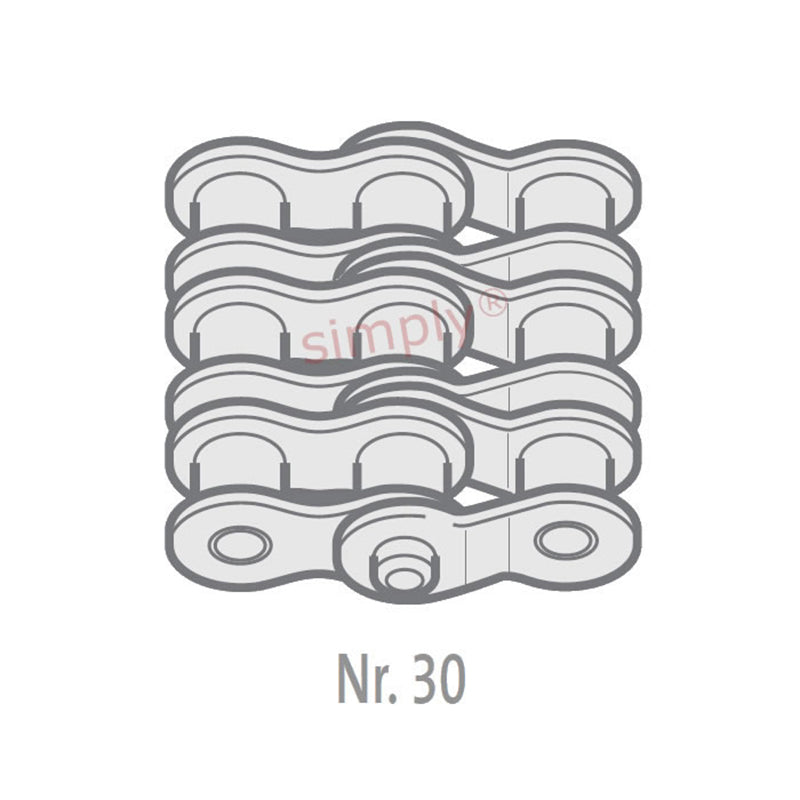

• Renold Synergy 12B-3-NO30 BS Triplex Chain Double Cranked Link 3/4 inch Pitch
1 1

SKU: 12B-3-SYN-NO30-RENOLD

Renold Synergy 12B-3-NO30 BS Triplex Chain Double Cranked Link 3/4 inch Pitch

Renold Synergy 12B-3-NO30 BS Triplex Chain Double Cranked Link 3/4 inch Pitch
€69,79 ex VAT
€69,79 ex VAT
Sale Sold out

In stock

Price Break
2+ €53,03
5+ €50,05
10+ €49,46
29+ €48,86
49+ €48,27
75+ €47,67
100+ €44,69
200+ €44,09
250+ €43,50
500+ €42,90
1000+ €41,71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BS_NO30T_DESC
Brand / Quality:
Renold - High Quality
Pitch:
19.05mm = 0.75 (3/4) inch
Technical
Pitch (A) 0.75 inch
Pitch (A) 19.05mm
Inside Width min (B) 11.68mm
Roller Diameter max (C) 12.07mm
Plate Height max (D) 16mm
Plate Width Inner max (E) 1.81mm
Plate Width Outer max (F) 1.81mm
Pin Diameter max (G) 5.72mm
Pin Length max (H2) 60.9mm
Connecting Link Extension max (J) 2.6mm
Transverse Pitch nom (K) 19.46mm
ISO606 Tensile Strength min 86700 N
Weight 0.015kg/m
Reviews
View full details
