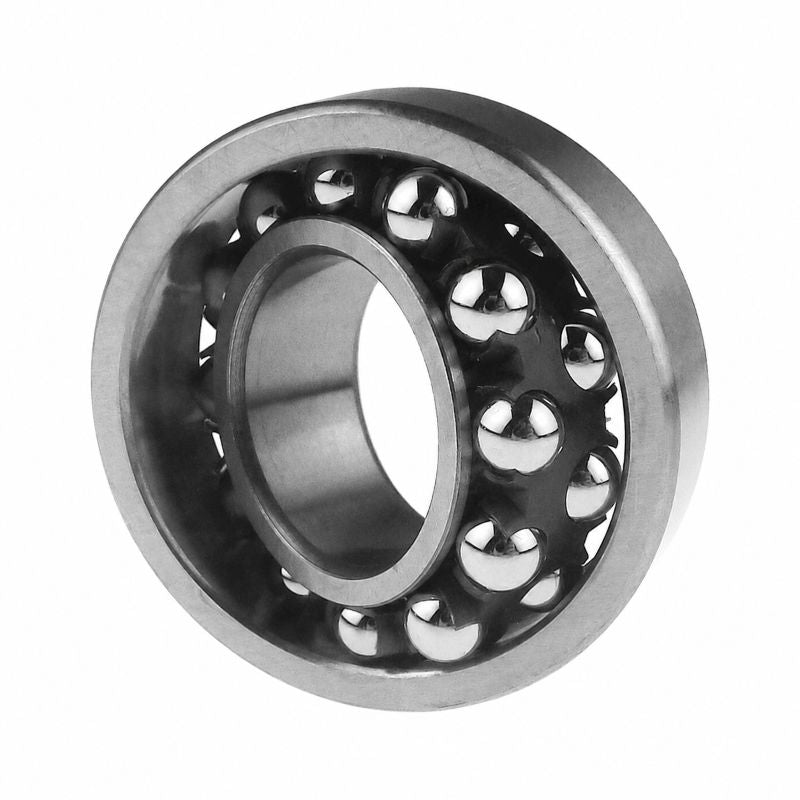

1319K Open Self Aligning Ball Bearing with Taper Bore 95x200x45mm

1319K Open Self Aligning Ball Bearing with Taper Bore 95x200x45mm
Regular price €374,17 ex VAT
Regular price Sale price €374,17 ex VAT
Sale Sold out

Equivalent to: 1319EK 1319K

In stock

Price Break
10+ €284,89
19+ €268,88
29+ €265,68
39+ €262,48
49+ €259,28
74+ €256,08
99+ €240,07
199+ €236,87
249+ €233,67
499+ €230,47
999+ €224,07
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
d 95mm
D 200mm
B 45mm
r1r2 min 3mm
--- Speeds, Loads and Weights
Dynamic Load 132kN
Static Load 52kN
Pu 1.9Kn
Reference Speed 4100rpm
Limiting Speed 4300rpm
Weight 6.9kg
--- Factors
e 0.23
Fa/Fr = e 2.7
Fa/Fr > e 4.2
Y0 2.9
--- Matching Adaptor Sleeves
Adaptor Sleeve <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H319+sleeve>H319</a>
Adaptor Sleeve <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE319+sleeve>HE319</a>
--- Matching Withdrawal Sleeves
Withdrawal Sleeve <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX319+sleeve>AHX319</a>
