SKU: 1335-1.1/4-RHP

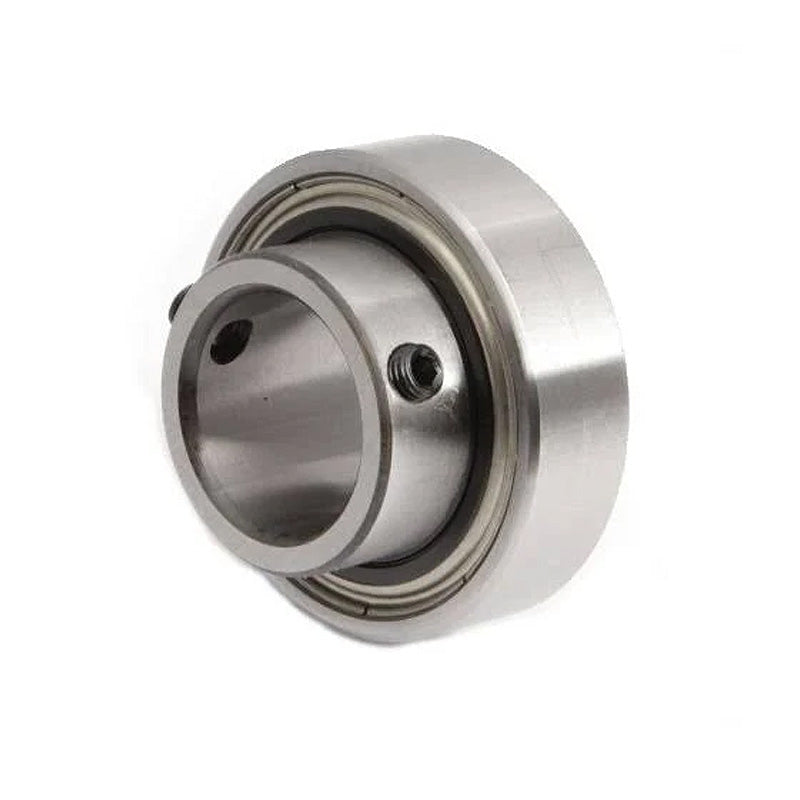

RHP 1335-1-1/4 Parallel Outer Flat Back Bearing Insert 1-1/4 inch Bore 72mm Outside Diameter
RHP 1335-1-1/4 Parallel Outer Flat Back Bearing Insert 1-1/4 inch Bore 72mm Outside Diameter
Out of stock
Description
Description
|
RHP 1300 Series: Flat back bearing insert with parallel outer race and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
- Style:
- 1335
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| D | 2.8346 inch |
| C | 0.669 inch |
| B1 | 1.374 inch |
| s1 | 0.376 inch |
| d1 | 1.838 inch |
| M | 0.289 inch |
| r | 0.039 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 0.43 kg |
