SKU: 1350-2EC-RHP

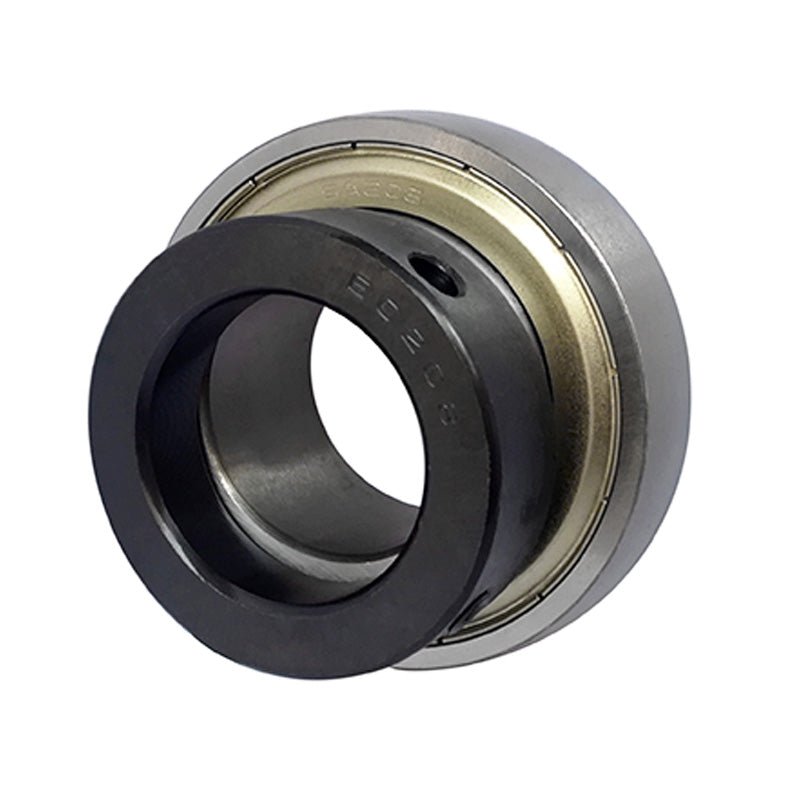

RHP 1350-2EC Parallel Outside Flat Back Collar Bearing Insert 2 inch Bore 90mm Outside Diameter
RHP 1350-2EC Parallel Outside Flat Back Collar Bearing Insert 2 inch Bore 90mm Outside Diameter
Out of stock
Description
Description
|
RHP 1300 EC Series: Flat back bearing insert with parallel outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, eccentric collar fixing, sealed for life |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 90mm
- Style:
- 1350
Technical
Technical
| Bore | 2 inch |
|---|---|
| D | 3.5433 inch |
| C | 0.787 inch |
| B2 | 1.718 inch |
| s1 | 0.435 inch |
| d2 | 2.75 inch |
| r | 0.039 inch |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 0.98 kg |
